CPY-5 Canopy Assimilation Chamber
Net Canopy CO2 Flux

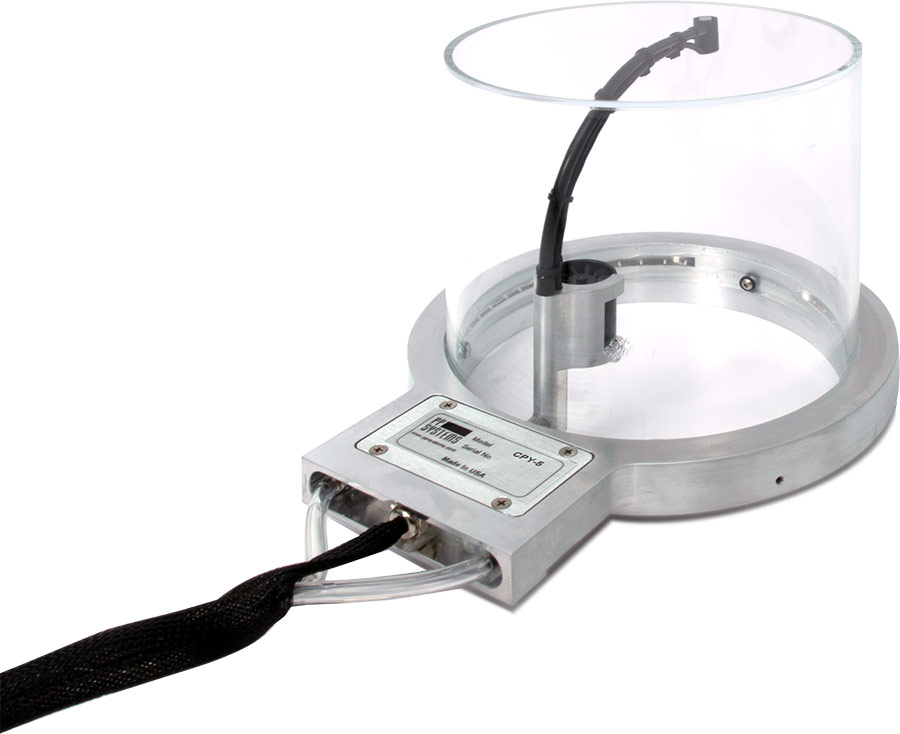

Our CPY-5 Canopy Assimilation Chamber is available for measurement of net canopy CO2 flux on low-lying vegetation and fruit. Constructed of rugged polycarbonate, the interior of the transparent chamber includes a user-adjustable PAR (Photosynthetically Active Radiation) sensor and an air temperature sensor near the soil surface. An air mixing fan and custom manifold system ensures uniform circulation within the chamber. An aluminum ring provides a good seal on the soil surface or on collars*. The Water Vapor Equilibrator comes standard.
Dimensions: 145 mm (Height) x 146 mm (Diameter)
Area: 167 cm2
Cable Length: 1.5 meters
Weight: 1.05 kg
Temperature Sensor (Precision Thermistor)
- Range: -5 °C to 50 °C
- Accuracy: ± 0.5 °C at 25 °C
PAR Sensor Fully cosine corrected
- Range: 0-3000 μmol m-2 s-1
- Accuracy: ± 5 μmol m-2 s-1
- Precision: 1 µmol m-2 s-1
