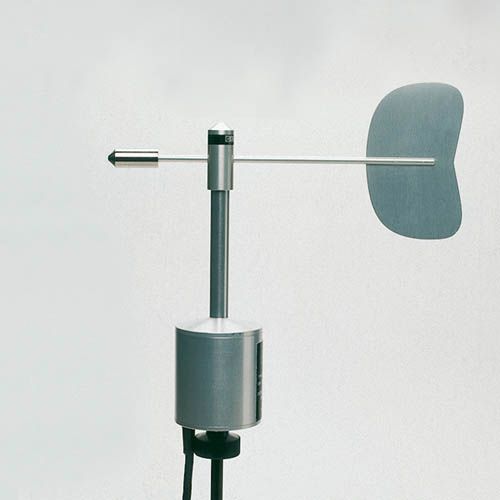

16.98.34 Wind Direction Sensor
Wind vane W200P (Vector), measuring range 0-360 deg. Accuracy +/- 3 degree. at wind speeds higher than 5 m/s, resolution 0.2 degr., supply voltage 1-20 Vdc, operating temperature range -50 till +70 °C. Cable length 5 m
- Eijkelkamp 16.98.34 Wind Direction Sensor for the registration of the wind direction.
- The wind vane will respond to wind speeds as low as 0.6 m/sec.
- Has an accuracy of +/- 0.2° at wind speeds over 5 m/sec.
N/A
| Data transfer | cable |
| International Protection Rating | 66 |
| Measured parameters | wind direction |
| Measuring accuracy | ± 2° @ v = > 5 m/s |
| Measuring principles | vane |
| Measuring range | 0 - 360° |
| Sensor ports | pulse |
| Product material | PVC, other material |
| Programming possibility | no |
| Registration type | digital |
| Package size | 48 x 10 x 23 cm |
| Weight | 470 gr |
| Applications | Erosion research, Irrigation research, Telemetry |
