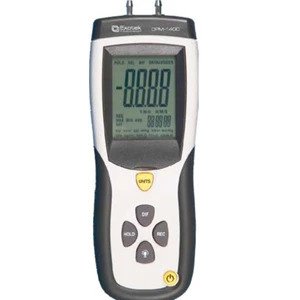

DPM-1400 Pressure Meter For Air And Non Corrosive Gases
The device measures Gauge/Differential Pressure from 0 to 5 psi , it features 11 selectable units of measure: inH20 , psi , bar , mbar, kPa , inHg , mmHg ,ozin ,ftH20 , cmH20, kgcm . Additional features include Data Hold. Auto Power Off disabled , and an RS232 for capturing reading to a PC using optional software . Careful use of this meter will provide years of reliable service.
| Accuracy | ± 0.3% FSO |
| Repeatability | ± 0.2% (Max.+/ -0.5% FSO) |
| Linearity/Hysteresis | ±0.29% FSO |
| Pressure Range | ± 5 psi |
| Maximum Pressure | 20psi |
| Response Time | 0.5 Seconds typical |
| Low Battery Indicator | Yes |
| Over range Indicator | Err.1 |
| Under range Indicator | Err.2 |
| Operating Conditions | 0 to 50 °C |
| Storage Conditions | -10 to 60 °C |
| Power Supply | 1×9V Battery or external 9VDC |
| Serial format: | Baud rate: 9600 Baud , 8 Data Bits. |
