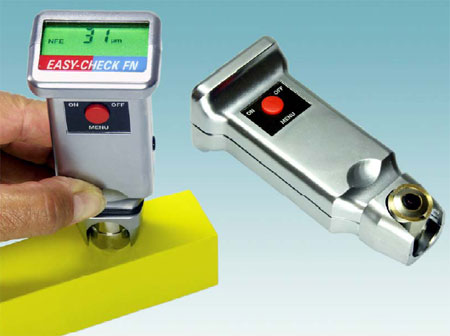

Worldwide the only pocket-sized
Coating Thickness Meters with a swinging probe making it possible to measure inside pipes or in other inaccessible places. By setting the probe on the object to be measured the devices recognize by itself the base material (ferrous or non-ferrous) and shows it on the display.
• Measurement on ferrous and nonferrous substrate without calibration. An outstanding feature is the measurement of insulating coatings on zinc plated metal using the NFE mode.
• EASY-CHECK works with only one single battery 1.5 V up to 80 hours. A rechargeable battery 1.2 V with charger is available on request.
• Easy and comfortable operation – just one key scrolls through the whole operation menu.
Serial interface – Data transfer by radio – Software High performance at a favourable price
| TECHNICAL SPECIFICATION: | EASY-CHECK FN | |
| In FE (Ferrous) Mode | Measurement of paint, varnish, plastics and galvanizing on iron and steel | |
| In FN ( Non-Ferrous metals) Mode | Measurement of insulating coatings (paint, varnish, plastics, anodizing) on non-ferrous metals | |
| Measuring Range | FE 0 - 5000 µm NFE 0 - 2500 µm Automatic recognition of the base material |
|
| Resolution: | < 100 µm : 0,1/1 µm > 100 µm : 1 µm > 1000 µm : 0,01 mm |
|
| Accuracy: | < 100 µm: ± 1 µm 100-1000 µm: ± 1% 1000-2000 µm: ± 3% > 2000 µm: ± 5% |
|
| Display: | LCD 3 - digits | |
| Power Supply: | 1.5V Mignon battery | |
| Selectable measuring units | Micrometer (µm) - mils | |
| Size: | 108 x 48 x 38 mm | |
| Weight: | 100 g | |
| Features: | Interface RS 232 Two-point calibration Automatic switch off Data storage 1000 readings |
