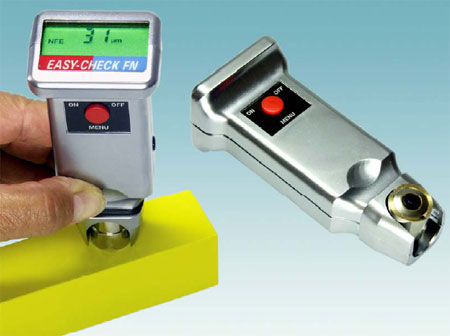

- EASY-CHECK FN includes both the magnetic induction and eddy current techniques with a twin-function probe.
- The following measurements can be performed: On iron and magnetic steel all non-conductive coatings (paint, varnish, plastics, rubber, ceramics) and galvanized films (except niquel).
- On non-ferrous metals (aluminium, bronze, brass, copper, non-magnetic steel) all nonconductive coatings (paint, varnish, plastics, anodizing on aluminium).
- EASY-CHECK FN can store 1000 readings and has a serial interface RS 232 for data transfer.
- All EASY-CHECK models are supplied with battery, calibration set and leather bag with belt loop.
| TECHNICAL SPECIFICATION: | EASY-CHECK FN | |
| In FE (Ferrous) Mode | Measurement of paint, varnish, plastics and galvanizing on iron and steel | |
| In FN ( Non-Ferrous metals) Mode | Measurement of insulating coatings (paint, varnish, plastics, anodizing) on non-ferrous metals | |
| Measuring Range | FE 0 - 5000 µm NFE 0 - 2500 µm Automatic recognition of the base material |
|
| Resolution: | < 100 µm : 0,1/1 µm > 100 µm : 1 µm > 1000 µm : 0,01 mm |
|
| Accuracy: | < 100 µm: ± 1 µm 100-1000 µm: ± 1% 1000-2000 µm: ± 3% > 2000 µm: ± 5% |
|
| Display: | LCD 3 - digits | |
| Power Supply: | 1.5V Mignon battery | |
| Selectable measuring units | Micrometer (µm) - mils | |
| Size: | 108 x 48 x 38 mm | |
| Weight: | 100 g | |
| Features: | Interface RS 232 Two-point calibration Automatic switch off Data storage 1000 readings |
