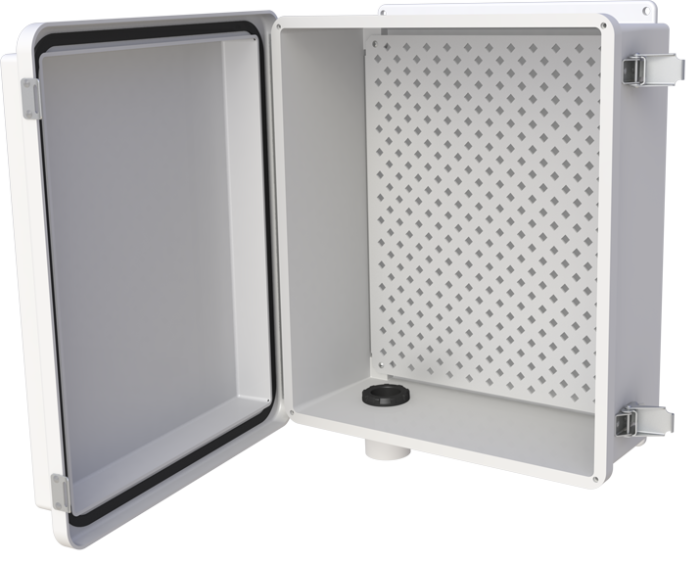

The ENC14/16's backplate is pre-punched with half-inch-on-centre holes suitable for attaching a data logger, power supply, and a communications or measurement and control peripheral.
This enclosure is shipped with the 7363 enclosure supply kit that consists of desiccant, a humidity indicator card, cable ties, wire tie tabs, putty, grommets, screws, and PVC coupling. Additionally, Campbell Scientific offers a CS210 Enclosure Humidity Sensor for monitoring relative humidity inside of the enclosure.
- Weather resistant to protect instruments
- Backplate designed so that Campbell Scientific components mount easily and securely
- White, UV-stabilized enclosure reflects solar radiation—reducing temperature gradients inside the enclosure without requiring a separate radiation shield

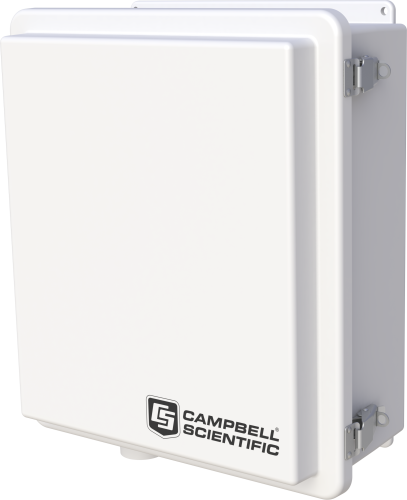

The ENC14/16 is a weather-resistant enclosure that is 14 in. wide and 16 in. tall. This medium-large enclosure can house a data logger, a power supply, and one or more peripheral—depending on the size of the peripherals. A common use for the ENC14/16 is to mount a larger enclosure to the leg base of a CM110, CM115, or CM120 tripod, because the larger ENC16/18 cannot be mounted to the leg base of these tripods.
- ENC 14/16 Enclosure Series houses one CR200-series, CR510, CR800, CR10X, CR1000, CR3000, or CR5000 datalogger, power supply, and one or more peripherals
- Cable entry options:
- One sealable conduit
- Two sealable conduits
- No cable openings
- Mounting Bracket options: MM attaches the enclosure to a tripod mast or user-supplied pole, TM attaches the enclosure to a UT10, UT20, or UT30 tower and LM attaches the enclosure to the leg base of a CM110, CM115, or CM120 tripod
| Color | White (Reflects solar radiation, reducing temperature gradients inside the enclosure without requiring a separate radiation shield.) |
| Construction | Fibreglass-reinforced polyester enclosure with door gasket, external grounding lug, stainless-steel hinge, and lockable hasps |
| Enclosure Classification | NEMA 4X (before being modified for cable entry) |
| Dimensions |
|
| Weight | 6 kg (13 lb) |
