Accurately measure air pollution
INDUSTRY GRADE DESIGN | HIGHEST ACCURACY
Start measuring the environmental impact of your operations.
Monitor pollution levels and make quick, effective decisions to protect human health and the environment. With the Kunak AIR Lite air quality monitoring station, you get accurate data on multiple pollutants easily, quickly and cost-effectively.
Designed for industrial applications and mass deployments in cities, the Kunak AIR Lite provides you with accurate, real-time air quality information.
Get high accuracy and spatial resolution air quality data.
Thanks to the patented smart cartridge technology, you can measure particulate matter (PM1, PM2.5 and PM10) and 2 gases simultaneously. If the characteristics of the project change, you can replace the cartridges and install new ones without having to send it back to the factory.
You can connect probes for wind, rain, noise, etc to get a more accurate pollution picture.
The Kunak AIR Lite is the perfect solution for your environmental monitoring network, designed for projects where no more than 2 gases and particles need to be measured and already used by many companies around the world.
Features:
Take fast and effective actions based on accurate and reliable data.
All data collected by the sensor network is wirelessly transmitted to the Kunak AIR Cloud software, where you can visualise and analyse it to make the best decisions to reduce the environmental impact of your operations.
Our solution has been tested by the world’s leading air quality experts.
Parameters:
| Dimensions | Weight | 200 x 153 x 185 mm | <2.3 kg |
| Enclosure | PMMA, polycarbonate and stainless steel |
| Operating temp. | RH | -20ºC to +60ºC | 0 to 99% RH |
| IP rating | IP65 |
| Battery | Lithium 2.9Ah or 20Ah |
| External supply | 7 – 12 Vdc. charger or 6 Vdc. solar panel |
| Autonomy | 24/7 with solar panel or charger |
| Power consumption | 0.08-0.55W (depending on configuration) |
| Communications | Cellular | Ethernet | Modbus RTU slave |
| GNSS | GPS and GLONASS |
| Built-in sensors | Temp. | Humidity | Atmospheric pressure | Dew point |
| Connectors | #1: Power 7V to 12V, #2: Several options to choose from:
|
| Avg. periods | From 10 seconds to a maximum of 24 hours |
| Sending periods | From 5 minutes to a maximum of 24 hours |
| SIM | Embedded eSIM and SIM holder |
Application-based designSelect your targeted pollutants for industrial monitoring or massive deployments in cities. |

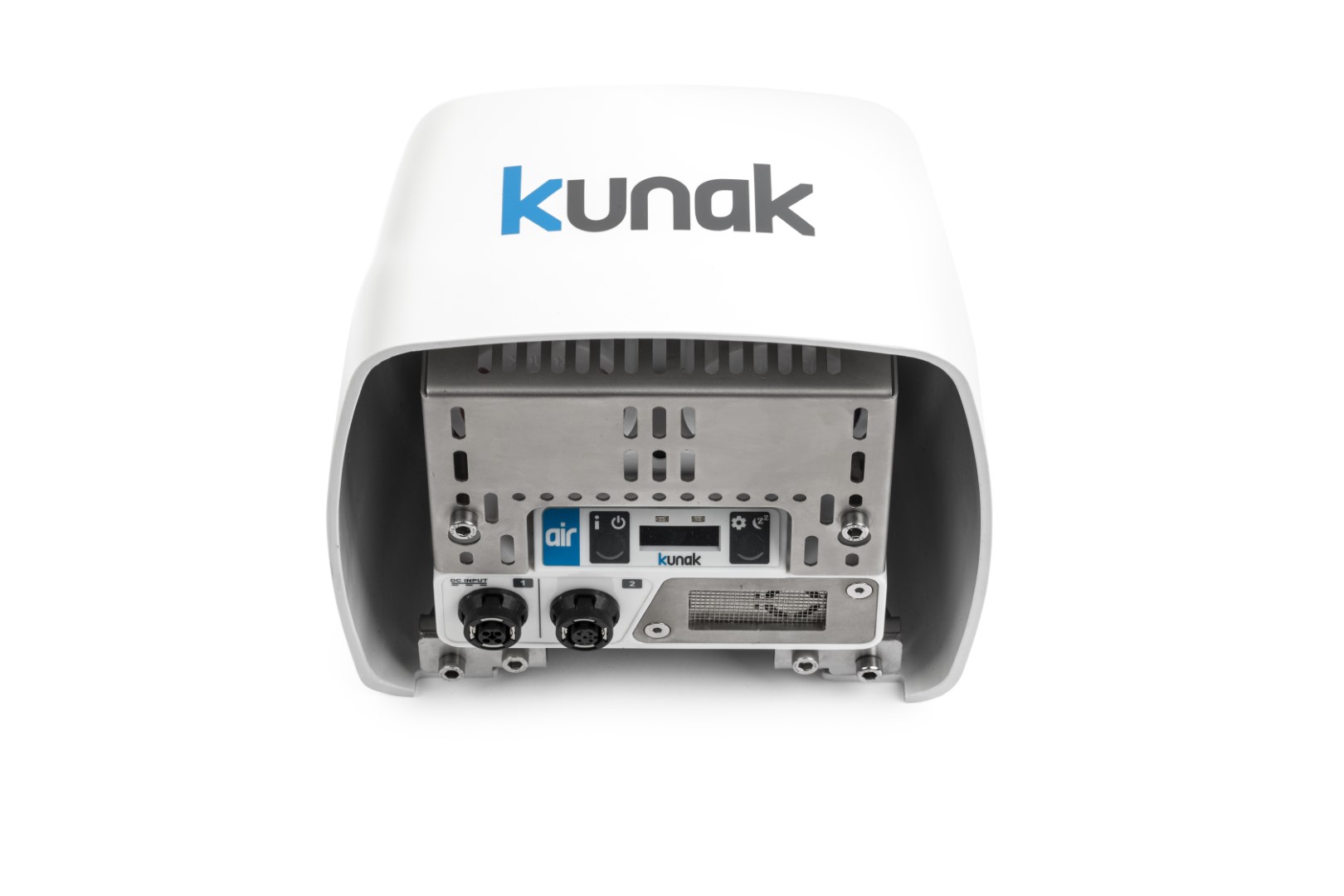

Built-in OLED displayEasy installation and on-field diagnosis thanks to its embedded display. |
Best accuracyGet the most reliable and accurate data without the need of additional external instruments. |
Cost-effectiveGet the most accurate technology at a fair cost. |

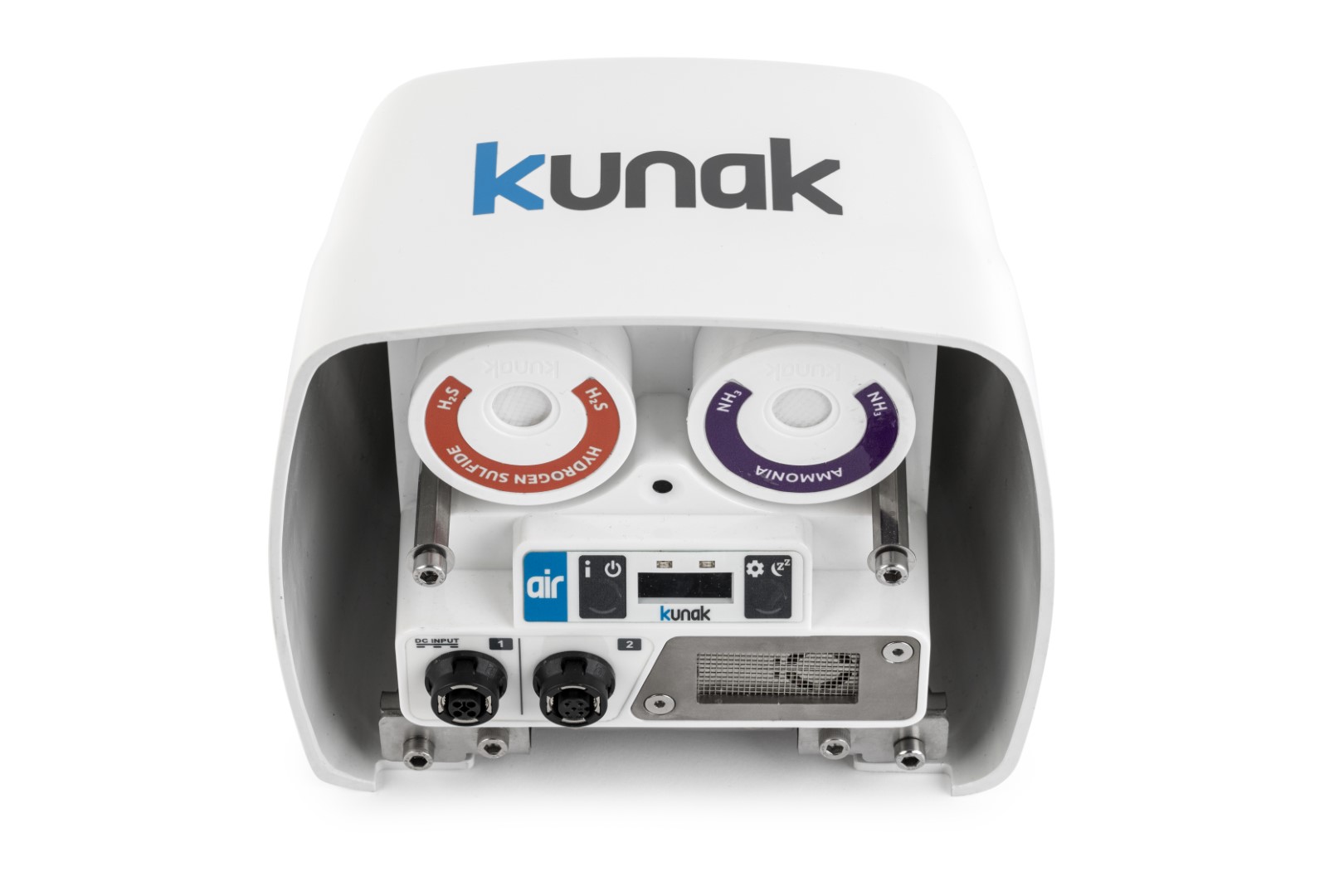

Cartridges systemReplace and combine gas cartridges and PM sensor with a plug & play system. |
Easy data integrationLocal wired integration through slave Modbus RTU or via API through the cloud. |
Rugged & Compact designThe smallest air quality solution designed for harsh environments (IP65 & IK08). |
Targeted pollutantsMeasure up to 2 gases and particulate matter at once. |

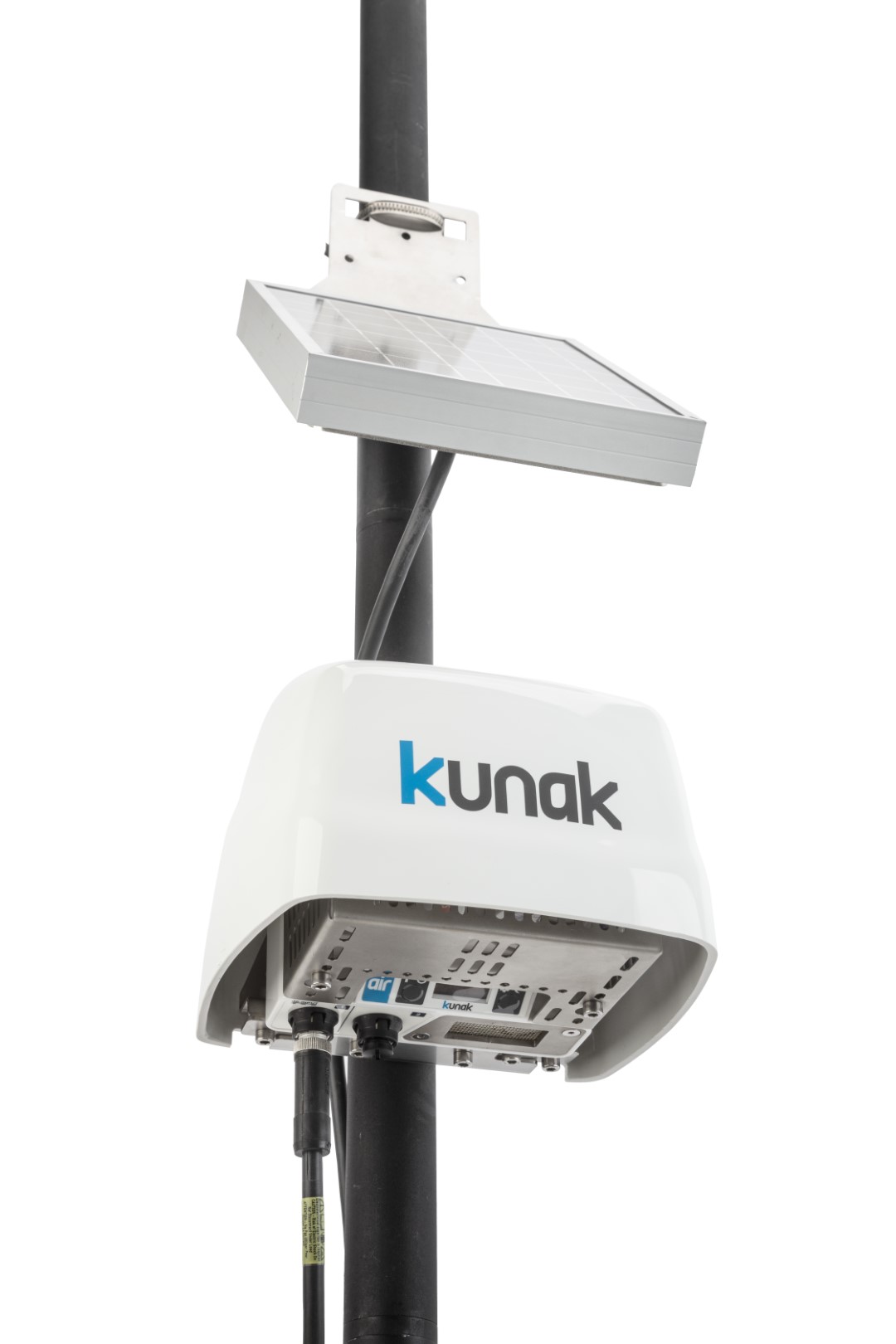

Fully autonomousAutonomous operation with its built-in battery and solar panel. |
With our advanced air quality software Kunak AIR Cloud, you can easily analyse all the data collected by the Kunak AIR stations and generate reports for decision-making.
In addition, you can configure the deployed devices and have an alarm system that facilitates remote operation and maintenance of the network in an easy way.
Integrate the data collected by the network and stored by the server into public air quality platforms or third-party applications using the powerful API Rest.
If required, the API also allows you to integrate data from external sources to complement the information provided by the monitoring network and analyse all data on a single platform.
