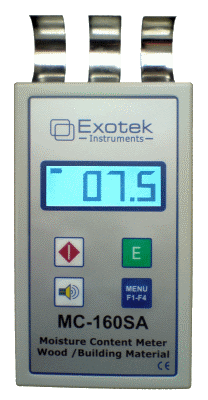

The new MC-160SA is a microprocessor-controlled hand-held instrument. It‘s reliable, easy to use and provides a faster and non-destructive evaluation of the moisture content of wood and building materials. The MC-160SA can be used in production or on construction sites for the control and inspection for the detection of water damage. In many cases is the relative humidity (RH) more meaningful. For this reason, the MC-160SA includes a software extension for the calculation and display of the RH-value of the moisture content of building materials.
- Gypsum fibre boards, Ytong
- Bricks, Tiles, Clinker
- Eternit slab, Plaster
- Sandstone, Limestone
- Concrete, concrete slab
- 230 different species of wood
- Fast and accurate measurements
- Easy handling and operation
- Prevention of mold formation in the house and garden
- Changeable alarm levels (can be stored) for different groups
- Backlight of the display and thus
- Clear readout both at day and night
|
TECHNICAL SPECIFICATION |
|
|
MEASURING PRINCIPLE: |
Capacitive field, |
|
MEASURING RANGE: |
Wood: 0- 82.5% H2O (at 200 kg/m³) Building material: 0- 16% H2O (at E1) |
|
MEASURING RANGE REL. HUMIDITY: |
Building material: 0- 98% RH (at E0 - E5) |
|
DENSITY RANGE WOOD: |
200-1100 kg/m3 |
|
MEASURING ACCURACY: |
± 1 % |
|
MEASURING GROUPS: |
16 |
|
SCANNING DEPTH: |
50 mm |
|
AUTOMATIC SHUT DOWN: |
Yes |
|
BATTERY WARNING: |
Yes |
|
WORKING TEMPERATURE: |
-10°C/+60°C |
|
DISPLAY: |
LCD graphical with back light |
|
RESOLUTION: |
0,1% |
|
CASING: |
ABS Plastic |
|
SENSOR: |
Springy stainless steel, passivated |
|
BATTERY: |
9V alkaline |
|
CARRYING BAG: |
Artificial Leather |
|
SIZE (L x W x H ): |
150 x 72 x 25mm |
|
WEIGHT (INCL. BATTERIE): |
160 g |
|
WARRANTY: |
2 Years |
