Portable reference sensor
350 nm to 1050 nm

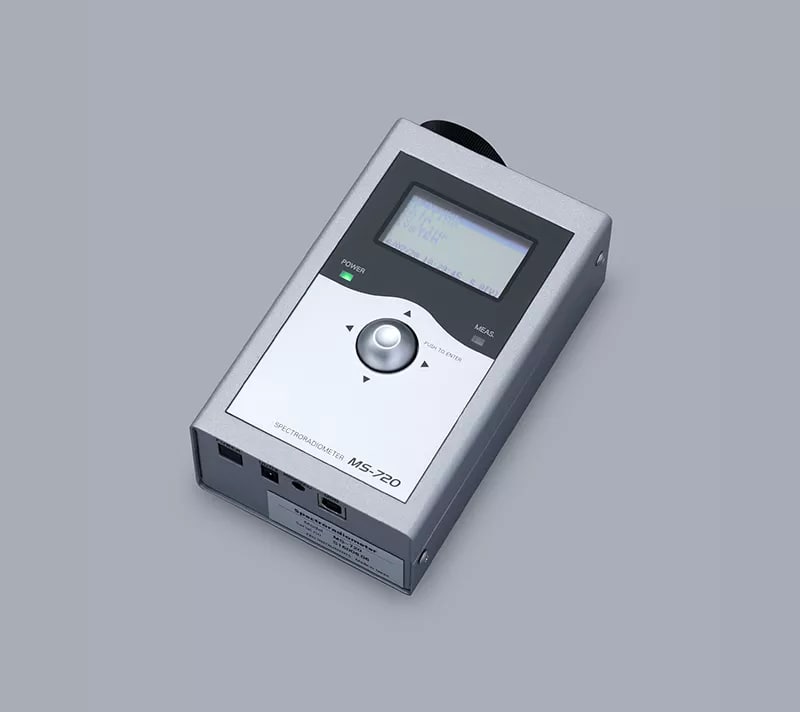

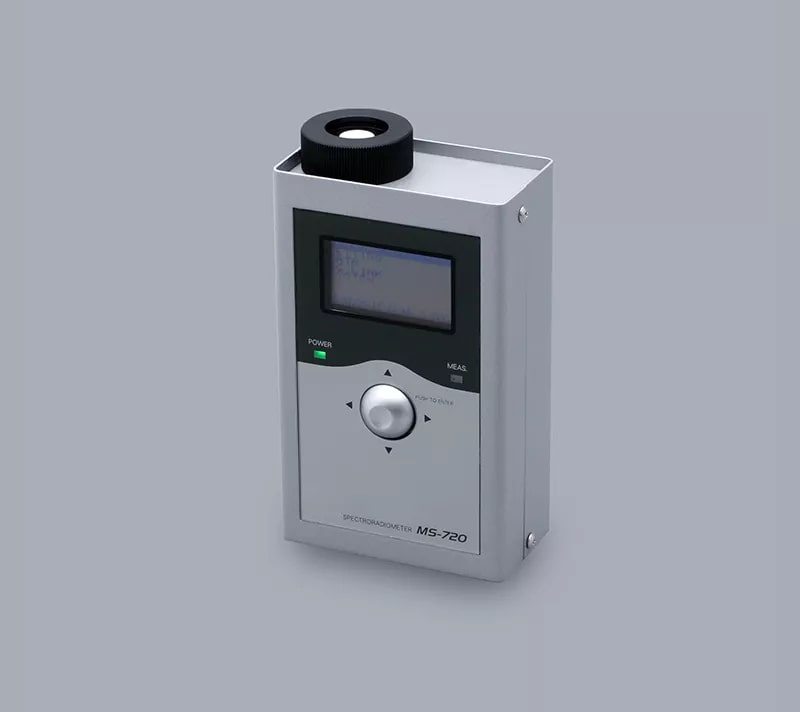

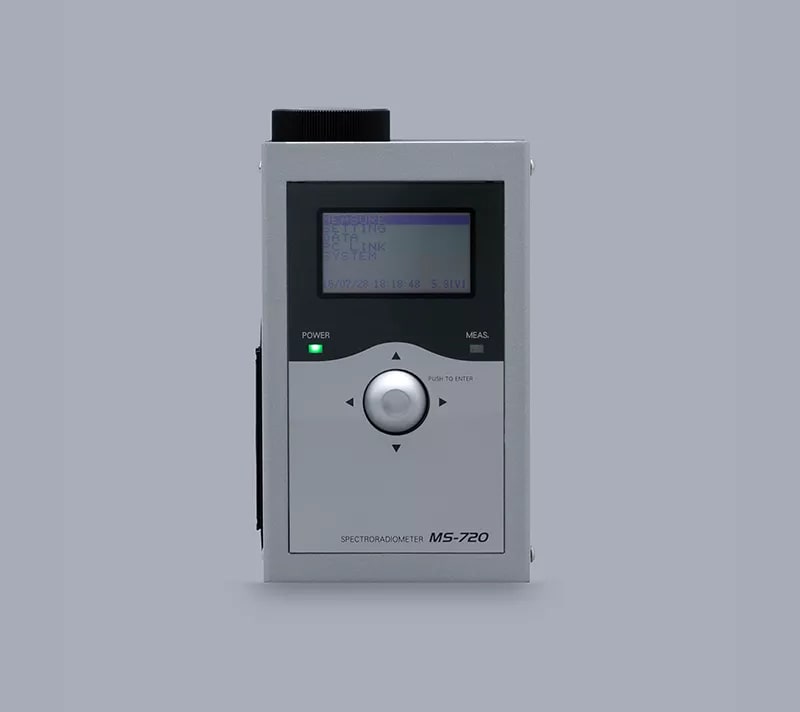

The MS-720 is a portable spectroradiometer designed to measure spectral irradiance indoors and outdoors in the visible to near-infrared range.
The MS-720 portable spectroradiometer is designed to measure the spectral irradiance in the range from Visible to Near-Infrared. The MS-720 is mainly used for the data acquisition for geological features, vegetation, oceanography, remote sensing and other applications.
The MS-720 is a handheld, portable spectroradiometer that measures spectral irradiance in the Visible to Near-Infrared range.
It is designed to support data acquisition applications for geological features, vegetation, oceanography, remote sensing, and more.
The MS-720 is a stand-alone capable device with an integrated LCD, internal memory for outdoor measurements, and a small integrated, stable grating spectrometer with a photodiode array.
Data from the MS-720 can be downloaded via PC using the MS-720 control software with several scientific functions incorporated, including the option to calculate the integrated irradiance of a measured spectrum against a reference spectrum.
- Portable reference sensor for indoor and outdoor solar research
- Robust design, no moving parts & high optical resolution
- Displays data for irradiance, luminance & PAR
| Wavelength range | 350 to 1050 nm |
| Optical resolution FWHM | < 10 nm |
| Wavelength accuracy | < 0.3 nm |
| Temperature response 0°C to 40°C | ± 5 % |
| Field of View (FOV) | 180 ° |
| Stray light | < 0.15 % |
| Measurement time | 0.005 to 5 Sec |
| Data storage | 800 |
| Communication | RS-232C / USB |
| Power supply | AA battery x 4 |
| Operating temperature range | -10 to 40 °C |
| Dimensions mm | 100 (W) x 165 (D) x 60 (H) |
| Weight | 0.72 kg |
| Power supply (Power Adapter) | 100-240VAC, 50/60Hz |
| Program | Analysis software |
| OS | Microsoft Windows 7/8/9/10 |
| Functions | Display and analyse data |
| Aperture | 45°, 25°, 15° |
