ISO 9060:2018 Class A
Spectrally Flat & Fast Response

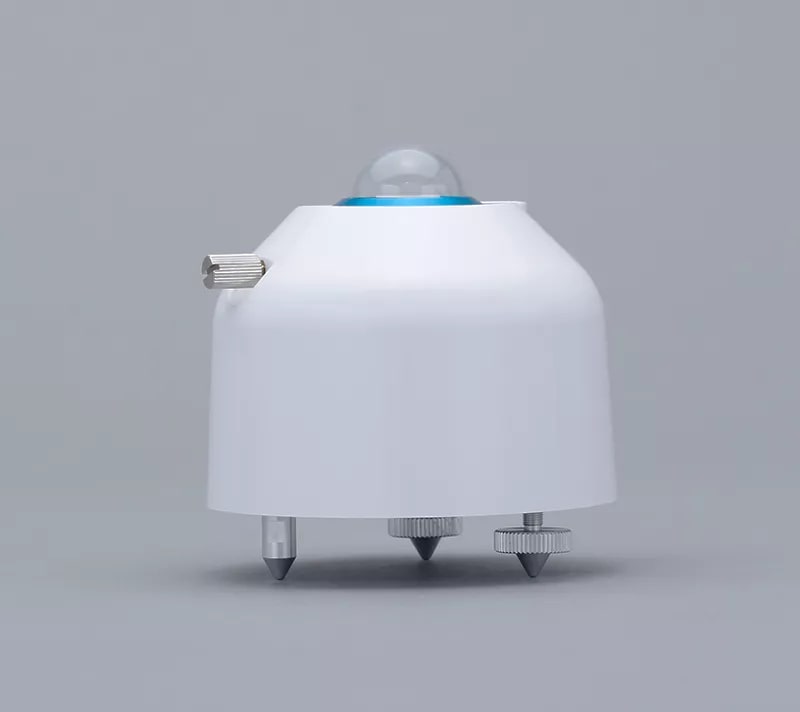

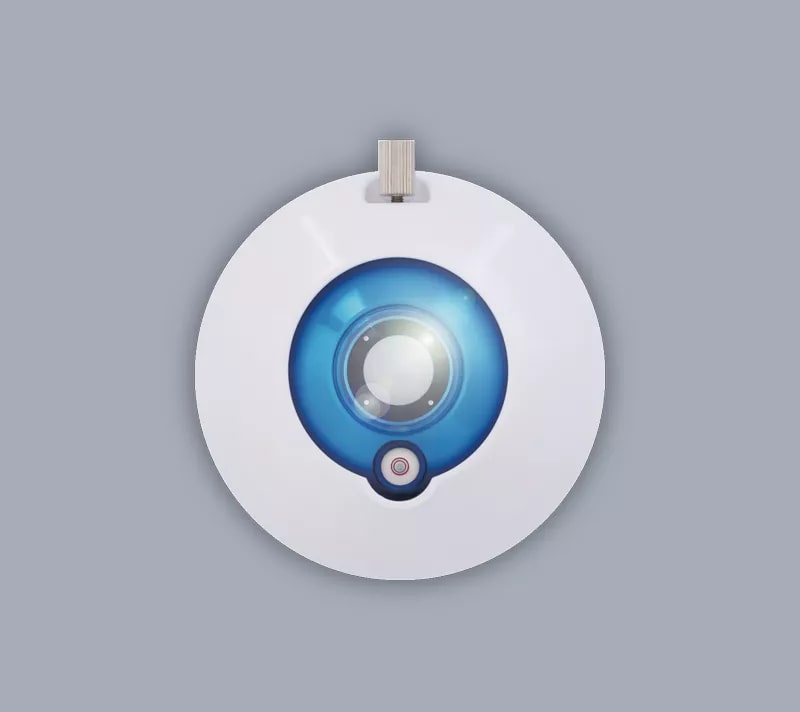

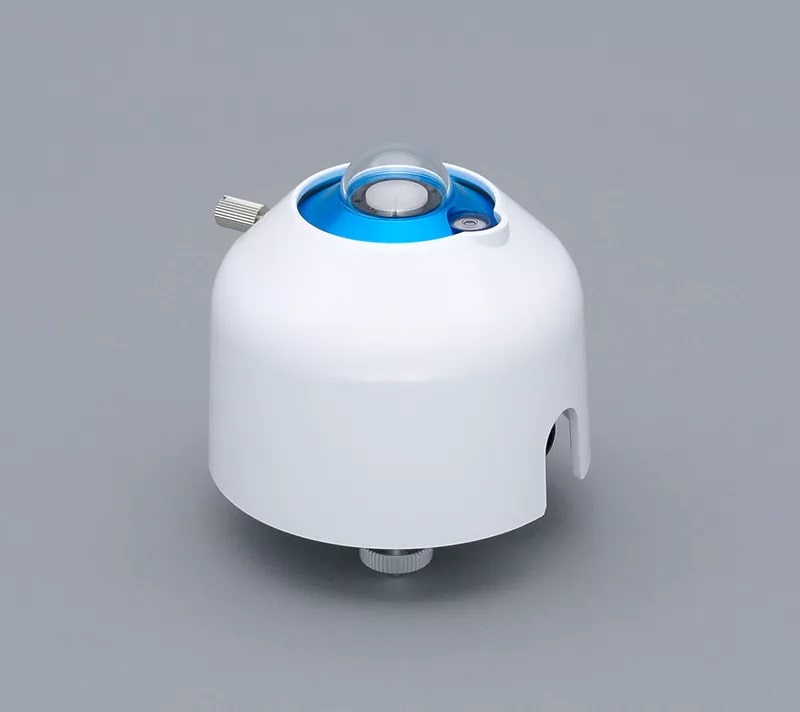

The elite MS-80S Class A pyranometer includes a state-of-the-art thermopile sensor, and new 'S-Series' internal diagnostics system, and 4-channel smart interface.
The MS-80S is an ISO 9060:2018 Class A pyranometer, in the top tier ‘fast-response’ and ‘spectrally flat’ sub-categories, with unprecedented low zero-offset behaviour, fast sensor response, ISO 17025 accredited calibration and a 5-year recalibration interval.
Building on the innovative patented design of the original MS-80, released in 2016, the MS-80S includes a state-of-the-art thermopile sensor, a new internal diagnostics system, and 4-channel smart interface.
The internal diagnostics system offers users visibility over internal temperature, humidity, tilt and roll angle; helping to ensure optimum performance without the need for regular physical checks; while the 4-channel smart signal transducer allows the MS-80S to easily connect to any analogue or digital measuring system, giving users a choice with Modbus 485 RTU, and SDI-12 for digital output; alongside 4-20mA, and 0-10mA (0-1V) analogue options.
- <0.5S Super-Fast response for always accurate measurements
- <1W/m² Record Lowest Zero Offset A, and <0.5% Lowest Non-Stability over 5-Years
- Unbeatable reliability, with a 5 Year Warranty & Recommended Recalibration Interval
- Level A EMI/EMC Electronics Surge Filter & Protection
- Internal Diagnostics for temperature, tilt, roll, and relative humidity
- Smart 4-channel Analog & Digital Interface
- Optional MV-01 Ventilator & Heater
| ISO 9060:2018 | Class A |
| Response time 95% | < 0.5 Sec |
| Zero offset A - Thermal Radiation (200W/m²) | ± 1W/m² |
| Zero offset B - Temperature change (5K/hr) | ± 1W/m² |
| Zero offset C - Total zero off-set | ± 2W/m² |
| Non-stability (change/year) | < 0.5%/5 years |
| Non-linearity (100 to 1000W/m²) | ± 0.2% |
| Directional Response (at 1000W/m² | 0 to 80°) | ± 10W/m² |
| Spectral Error | ± 0.2% |
| Temperature Response (-20°C to 50°C) | ± 0.5% |
| Tilt Response (0-90° | 1000W/m²) | ± 0.2% |
| Additional Signal Processing Error | < 1 W/m² |
| Wavelength Range (nm) | 285 to 3000 |
| Irradiance range (W/m²) | 0 to 4000 |
| Signal Output | Modbus 485 RTU / SDI-12 / 0-10mA / 0-1V |
| Sensor Diagnostic | Relative Humidity ± 2% Temp. ± 0.1% / Tilt Angle ± 1° |
| Operating temperature | -40 to 80°C |
| Supply voltage | 5 to 30 VDC |
| Power Consumption | < 0.2 W |
| Ingress Protection | IP 67 |
| Calibration traceability / uncertainty | ISO 17025 / WRR / < 0.7% (k = 1.96) |
| Standard Cable Length | 10m (Optional lengths 20m, 30m, 50m) |
