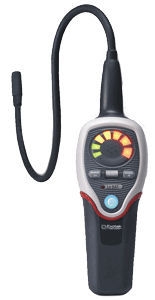

RLD-1401 Refrigerant Leak Detector
The New RLD-1401 comply to the standard E 35-422 SAEJ1627 which is more stringent than earlier specifications. The micro processor controlled instrument is usefull to finding leaks of the primary circuit on Coolingsystem as well as heat pumps wher refrigerants are used. The preheated semi-conductor sensor is very sensitive for a vide variety of refrigerants.
- 40 cm Gooseneck to detect leaks in hard to reach areas.
- Variable Intensity Audio Alarm
- 3 Levels of Sensitivity
- Ambient Concentration Reset
INTENDED USER | Maintenance personnel HVAC equipment |
Refrigerants | R-134a, R-404A, R-410A, R-407C, R-22, |
MEASURING PRINCIPLE | Heated Semiconductor Gas sensor. The instrument is fitted with an Air Suction System for faster response and sensitivity. |
MEASURING SENSITIVITY | 3 grams/ Year depending on type of refrigerant. |
SETTINGS | 3 sensitivity levels |
BATTERY WARNING | Yes |
WORKING RANGE | 0° C/+40° C |
DISPLAY | 7-LED Three coloured bar scale |
RESOLUTION | 0,1 % |
CASING | ABS Plastic |
SENSOR | Heated Semiconductor Gas sensor. |
BATTERY | 4 AA Size Alkaline batteries |
CASE | Hard case |
SIZE (L x H x D ) | 217 x 66 x 56 mm |
WEIGHT (INCL. BATTERY) | 400 g |
WARRANTY | 1 year against manufacturer defect |
