MS-711N + MS-712

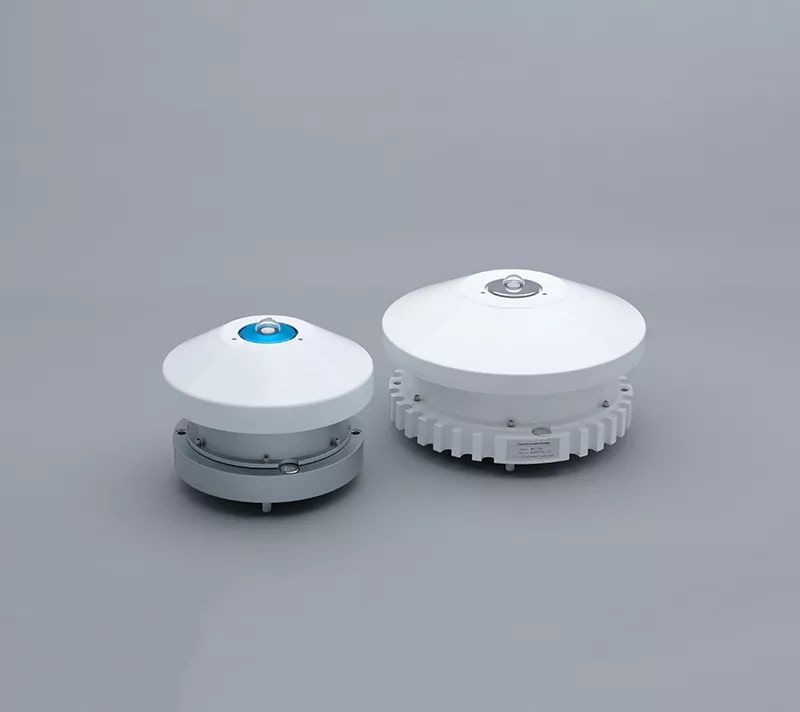

Designed for accuracy, and built for outdoor reliability, the all-weather WISER I combines the MS-711N and MS-712 spectroradiometers for the most accurate outdoor solar spectral data.
The WISER I Spectroradiometer configuration, combining the MS-711N, measuring the spectral range from 300nm to 1100nm (UV-Visible-NIR), and the MS-712 for the near-infrared (NIR) range between 900nm and 1700nm, is designed to provide the most accurate outdoor solar spectral data.
With temperature-controlled sensor units and NIST traceable calibration, the WISER I delivers improved stability and long-term reliability, suitable for all-weather conditions and continuous outdoor use, with an operational temperature range of -10 to 50°C.
Often installed in fixed locations for meteorological, plant science, photovoltaic research, and material analysis applications, the WISER I is also suitable for use as a travelling reference, with separate power supplies for both sensors, a calibration uncertainty budget, and software, including 'Nami', for sensor management, data analysis, and visualisation.
- All-weather build & temperature controlled sensor unit for continuous outdoor use
- Excellent stability & long-term reliability
- Broad measurement range, from 300nm to 1700nm
- Operating temperature range -10 to 50°C
- NIST Traceable calibration

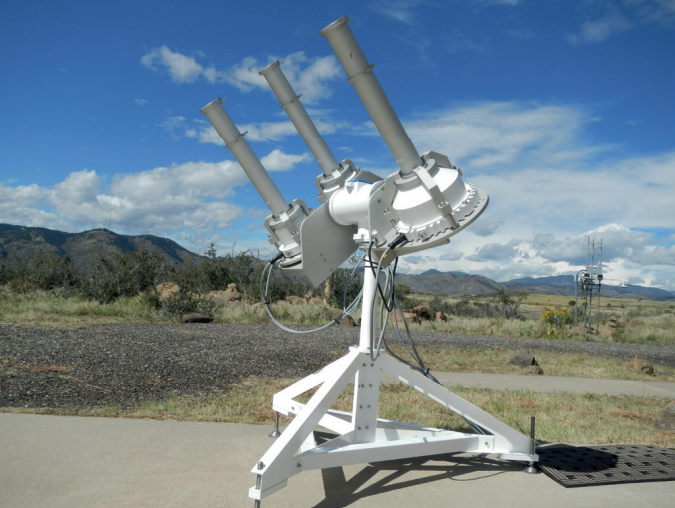

- Compatible with STR32G Sun Tracker for measuring direct spectral irradiance
| Wavelength range | 300 to 1700 nm |
| Program | Analysis software WSDAc |
| OS | Microsoft Windows 7/8/9/10 |
| Functions | Display and analyse data |
| Cable length | 10 m ( 20m / 30 m) |
| Field of View (FOV) | 180 ° |
