Thermometers And Temperature Strings
- Sisgeo Thermometers And Temperature Strings is a very important parameter to control for evaluating the influence of the thermal effects on the measurements and on the structure which is monitored.
- Thermometers are available with platinum RTD (Resistance Thermal Detector) thermistor or vibrating wire probes.

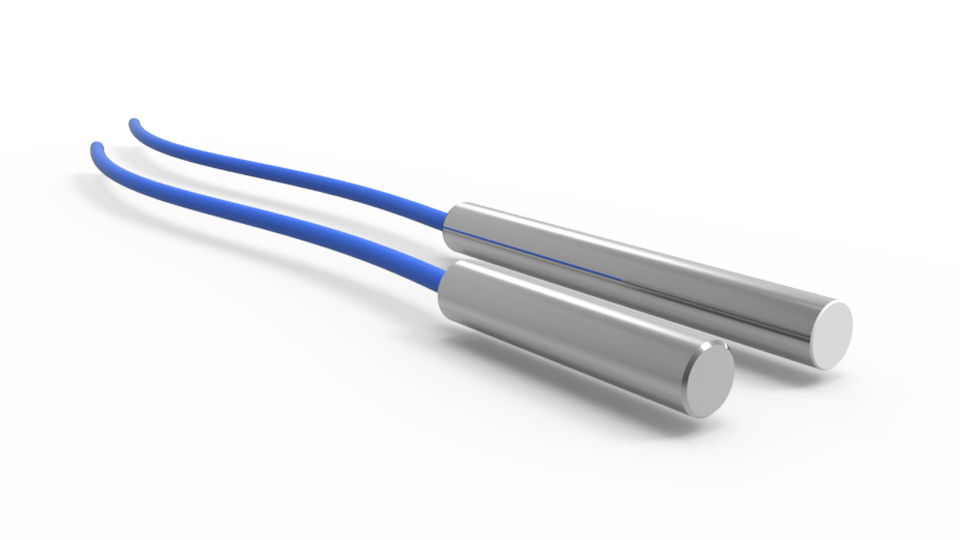

- All models are housed in a shock resistant stainless steel body to be embedded in concrete.
- Temperature string probe is available for multiple thermal measurements in boreholes, treches or to be embedded into concrete.
| Model | 0T3800GKA00 | 0T111PT1000 | 0T2200VW000 (Only on request) |
| Measuring principle | NTC, thermistor |
RTD, 100Ω (PT-100) (Class A EN60751) |
Vibrating wire + NTC |
| Nominal range | -40°C +125°C | -200°C +400°C | -20°C +80°C |
| Resolution | 0.1 °C | 0.1 °C | 0.1 °C |
| Accuracy | ±0.5 °C (from 0°C to 50°C) | ±0.2 °C @ 0°C | ±1.0 °C |
| Diameter | 12 mm | 20 mm | 20 mm |
| Length | 55 mm | 100 mm | 166 mm |
| Material | stainless steel | stainless steel | stainless steel |
| Temperature range | -30°C +80°C with standard cable | -30°C +80°C with standard cable | -30°C +80°C with standard cable |
| IP Class | IP68 | IP68 | IP68 |
| STANDARD SIGNAL CABLE | 0WE104SG0ZH | 0WE104K00ZH | 0WE104K00ZH |
| MODEL | 0TS00NTC000 | 0TS00RTD000 |
| Type of sensor | NTC thermistor |
RTD 100 Ω (PT-100) (Class A EN60751) |
| Number of sensors | 4, 8, 12, 16 | 4, 8 |
| Nominal range | -40°C +125°C | -200°C +400°C |
| Accuracy | ±0.5 °C (from 0°C to 50°C) | ±0.2 °C @ 0°C |
| Sensed section |
PVC length 180 mm Ø 28 mm |
PVC length 180 mm Ø 28 mm |
| Temperature range | -30°C +80°C with standard cable | -30°C +80°C with standard cable |
| IP Class | IP68 | IP68 |
| STANDARD MULTICORE CABLES |
0WE1160LSZH (No. 4 or 8 measuring points) 0WE1320LSZH (No. 12 or 16 measuring points) |
0WE1160LSZH (No. 4 measuring points) 0WE1320LSZH (No. 8 measuring points) |
