Thermal Monitoring Kit For Buildings
The QRU-100 Thermal Monitoring Kit for Buildings is designed for building inspectors, energy audit specialists, researchers, and energy advisors. It is easy to use, lightweight and comes pre-configured and ready to go.
The QRU-100 is designed to make the thermal performance evaluation of buildings and components easy, efficient, and accurate.
A critical requirement for modern construction, renovation, quality assurance, and energy efficiency assessment, the QRU-100 thermal monitoring kit includes separate indoor and outdoor measuring units. Indoor heat flux monitoring, together with indoor and outdoor temperature sensors, allow the QRU-100 to measure both thermal transmittance and thermal resistance, the U and R-Value of a wall or similar structure based on the standard methods defined in ISO 9869, ASTM C1046 and ASTM C1155.

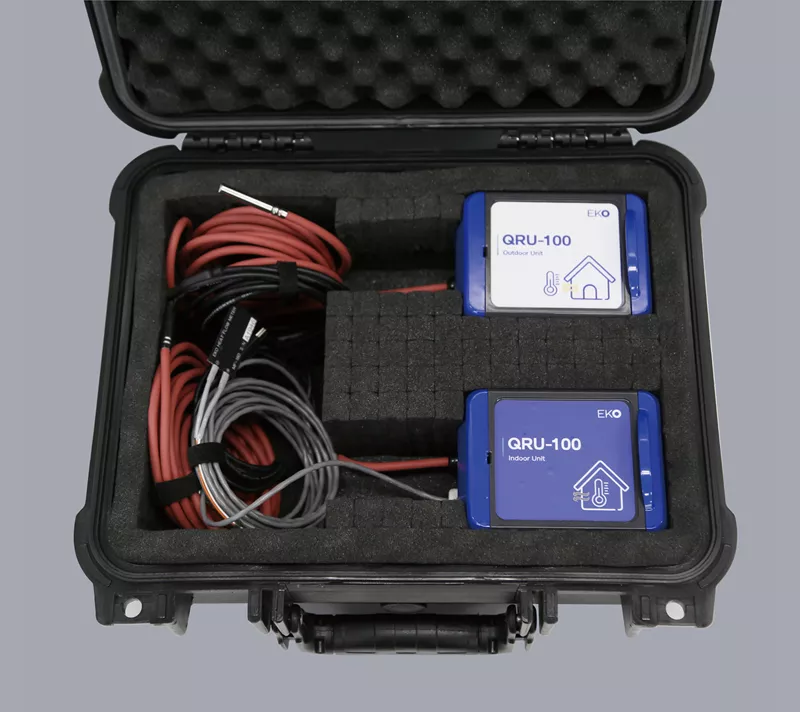

The QRU-100 is delivered in a weather-proof case. Each measuring unit has a long-life battery and ultra-high-resolution data-logger that can store up to 4 million data points, preconfigured and ready to use.
- Pre-configured, quick set-up & ready to go
- Tough carry case & Weather resistant housing
- Independant ultrahigh resolution data loggers in each unit
- Compatible with ISO 9869, ASTM C1046 & C1155 in-situ thermal measurement
| Number of measurement points | 3 |
| Logger Operating temperature range | -40 to +90°C |
| Data storage | 4 Million Data points |
| Datalogger battery life | Interval: >1min : 4 years - 10s : 230 days |
| Battery type of the data logger | Lithium type SL-750/S |
| Interface | USB to PC |
| Software | InfraLog 5 |
| Measurement unit IP level | IP66, IP68 |
| Transport case IP level | IP67 |
| Weight (Measurement unit) | 0.335 kg |
| Weight (incl Transport case) | 2.5 kg |
| Dimensions (Measurement Unit) | 113 x 80 x 60 mm |
| Dimensions (Transport case) | 350 x 295 x 150 mm |
| Heat flux sensor type | EKO MF-180 |
| Heat flux sensor nominal sensitivity | Approx. 28 μV/W/m² |
| Heat flux range | ±1500 W/m² |
| Heat flux sensor temperature range | -30 to 120°C |
| Temperature Sensor type | PT-1000, 4-wire |
| Temperature sensor accuracy | 1/10 DIN class |
| Temperature Sensor Range | -60 to 180°C |
| Sensor Cable Length | 3 m |
