04.04 Gouge Auger Set For Stepwise Sampling
Hand-operated equipment can be applied for soil research up to a depth of 5 to 10 meter. In this product information leaflet, a number of gouge augers are described. Their mutual quality is that they are all fitted with an almost half-cylindrical operational part with parallel cutting edges running vertically, justifying the name gouge auger. This operational part may vary in length as well as in diameter. The most suitable length depends on the penetration resistance, the substance of the soil and the required boring depth. The longer the operational part the more vulnerable the auger is to torsion.
The selection of the most suitable diameter depends on the composition and the structure of the soil and on the purpose of the research. In general, a smaller diameter is applied in soils with a fine and/or dense structure, by comparison to soils with a loose structure (for instance young swampy peat).

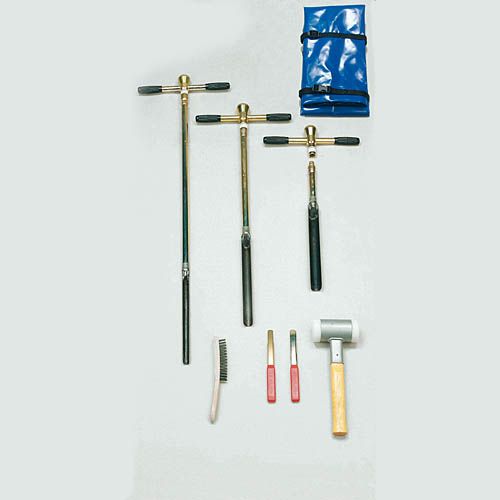

The set consists of three bi-partite gouge augers with different diameters. By first taking a sample with the gouge with the largest diameter and subsequently with gouges having smaller diameters cross-contamination among the samples is avoided. The gouge augers can be pushed into the soil, or hammered (with an impact-absorbing hammer). Because of the short operational length and the diminishing diameters the set is very suitable for profile research (nitrate research) in soils with a somewhat higher penetration resistance.
The set consists of three bi-partite gouge augers with different diameters. By first taking a sample with the gouge with the largest diameter and subsequently with gouges having smaller diameters cross-contamination among the samples is avoided. The gouge augers can be pushed into the soil, or hammered (with an impact-absorbing hammer). Because of the short operational length and the diminishing diameters the set is very suitable for profile research (nitrate research) in soils with a somewhat higher penetration resistance.
- Consist of three bi-partite gouge augers with different diameters.
- Sampling first with the largest diameter gouge and subsequently with smaller diameter gouge to avoid the cross-contamination among the samples.
- Gouge augers can be hammered (with an impact-absorbing hammer).
- Eijkelkamp 04.04 Gouge Auger Set For Stepwise Sampling suitable for soil profile research (nitrate research) because of its short operational length and diminishing diameters.
Benefits Gouge auger set for stepwise sampling
- Meant to sample agricultural top 90 cm
- Gouges 40, 30 and 20mm of 30 cm net length
- Start large and finish narrow to limit pulling up force
| Connection | screwthread |
| Maximum sample depth | 90 cm |
| Product material | iron, other material |
| Sample diameter | 16 / 25 / 35 mm |
| Sample length | 30 cm |
| Sample specification | semi-disturbed |
| Package size | 117 x 27 x 23 cm |
| Weight | 13.6 kg |
| Applications | Soil sampling above the groundwater table, Archaeological soil research, Environmental soil research |
