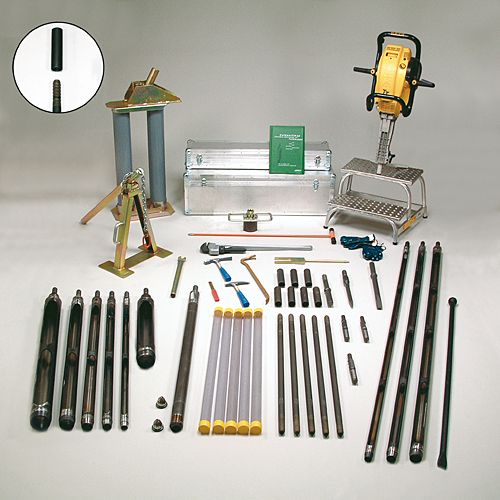

The Eijkelkamp percussion drilling set for heterogeneous soils with gasoline-powered percussion hammer (Cobra TT), is standard equipped for drilling to a depth up to 5 meter. The complete set contains a gasoline-driven percussion hammer with accessories and wooden transport box, various extension rods, coupling sleeves, percussion gouges (combination type for various types of soil) in various diameters and lengths, a core sampler for PVC sample tubes and foils liners, a mechanical rod puller, a universal casing and rod puller clamp, a rod puller extension for the extraction of the first gouge, a crowbar, accessories to empty and cleans the gouge, a lifting jack with lever and chain, a utility probe for safe cable finding, stairs for use with the percussion hammer in the field, etc., and aluminium transport cases.
RD32-connection
The percussion drilling sets of Eijkelkamp Soil & Water are equipped with RD32-connection extension rods and percussion gouges are screwed together using a coupling sleeve. The RD32-connection is used in firmer, dryer soils. The RD32-connection takes very little time to attach and take off. The RD32-rods connect together by means of a coupling sleeve, which means that the massive extension rods have the same diameter along the entire length, which makes them very strong.
- Eijkelkamp 04.19.SC Percussion Drilling Set For Heterogeneous Soils With RD32-Connection for drilling up to a depth of 5 m.
- The complete set contains: a gasoline-driven percussion hammer, various extension rods, coupling sleeves, percussion gouges (combination type) in various diameters and lengths, a core sampler for PVC sample tubes and foils liners, a mechanical rod puller, a universal casing and rod puller clamp, a rod puller extension for the extraction of the first gouge, a crowbar, accessories to empty and clean the gouge, a lifting jack with lever and chain, a utility probe for safe cable finding, stairs for use with the percussion hammer in the field, etc., and aluminium transport cases.
The RD32-connection is used in firmer, dryer soils. - The RD32-rods connect together by means of a coupling sleeve, which means that the massive extension rods have the same diameter along the entire length, which makes them very strong.
Benefits Percussion drilling set
- Ideal for soil with bricks, large or many stones
- The solution for city centres / industrial sites
- Beautiful clean samples, no lubricants used
- Extremely sturdy rods and gouges
- Diameters allow efficient, rapid and light work
- Can be combined with liner or foil sampling
Remarks
- Does not replace diamond core cutting
- Not for fibrous material like (thick) roots
- Porosity needed, not for dry glacial loams
- Contact SonicSampDrill for larger depths
| Connection | screwthread |
| Drilling diameter | max 10 cm |
| Maximum sample depth | 8 m |
| Power supply | gasoline |
| Product material | iron, other material |
| Sample diameter | 40 - 100 mm |
| Sample length | 50 - 100 - 200 cm |
| Sample specification | undisturbed |
| Sample stored in | foil, tube |
| Sampler position | vertical |
| Package size | 223 x 80 x 80 cm |
| Weight | 375 kg |
| Applications | Soil profile description and classification, Soil sampling above groundwater table, Soil sampling below groundwater table, Environmental soil research, Undisturbed sampling |
