08.15 Soil Sampling And Classification Set, Standard Set For Investigations Down To A Depth Of 2 Meter
Soil sampling and classification set, standard set to a depth of 2 m.
- Allow for in situ investigation.
- Eijkelkamp 08.15 Soil Sampling And Classification Set, Standard Set For Investigations Down To A Depth Of 2 Meter suitable for investigations down to a depth of 2m.

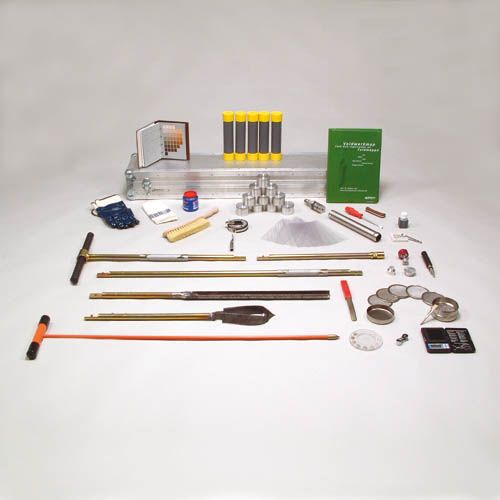

- Consists of an Edelman auger (combination type), a gouge auger (inclusive of accessories), and a liner sampler (including soil sample containers).
- Determination of soil pH by using a pH-indicator (range of pH 4 to 9, accurate to 0.5).
To determine the physical qualities of the soil a pocket interchange sieve set, a sand ruler, a portable electronic balance, a colour identification book for soil, a pocket penetrometer and a pocket vane shear tester, an aplanatic magnifier and a pocket knife are included in the set. For the determination of the groundwater level a sounding device with measuring tape has been included. Various accessories including a glass fibre utility probe (to check the substratum to avoid cutting through obstacles such as cables and tubes), aluminium soil sample boxes, a field data registration set, maintenance kit, work gloves and an aluminium transport case.
| Angle of cone | 0 ° |
| Cone surface range | 0.3165 cm² |
| Connection | screwthread, bayonet |
| Drilling diameter | 7 cm |
| Maximum force | 500 @ 0.3165 cm² kPa |
| Maximum measuring depth | 1 cm |
| Maximum sample depth | 2 m |
| Maximum shear stress | 250 kPa |
| Measuring range | 0 - 500 kPa, 0 - 2.5 kg/cm² |
| Product material | stainless steel, iron, other material |
| Sample diameter | 37 mm |
| Sample length | 20 cm |
| Sample specification | undisturbed |
| Sample stored in | foil |
| Sampler position | vertical |
| Package size | 117 x 27 x 23 cm |
| Weight | 21 kg |
| Applications | Soil profile description and classification, Soil sampling above groundwater table |
