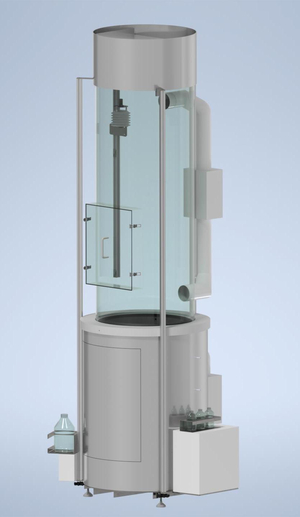

EcoLab500
The EcoLab500 is a measuring system t o study comprehensively ecosystem functions in the soilplant-atmosphere continuum
At a glance:
- Soil Unit with soil sensors (temperature, tension, water content), suction cups or suction plates, soil cooling system and weighing system
- Atmosphere Unit with air sensors (temperature, humidity), fans and irrigation system
- Sun simulator with high-performance LED lighting, separately dimmable wavelengths (blue, red, white), cycle simulations of day light spectrum possible
- Control Unit with power supply for the sensors and actuators as well as a PLC for the digital connection of all sensors and actuators and for the implementation of all control processes and for data recording
Advantages
- Study complex interaction between pedosphere, flora, fauna and atmosphere
- A range of optional accessories allows adaption to a wide range of research questions
- Compact: fits in an area of 1.5 x 1.5 meters
- Easy to set up: can be set up by hand by two persons only
EcoLab500 BASIC:
|
Outer dimension |
1.200 mm x 1.200 mm x 3.000 mm (l x w x h) |
Soil Unit:
|

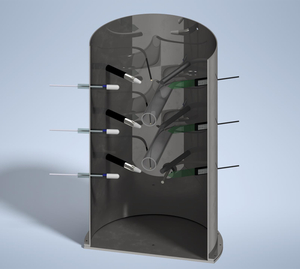

Lysimeter dimensions |
Ø 500 mm, height 900 mm |
|
Lysimeter material |
stainless steel, 1.4301 |
|
Sensors |
Full-Range-Tensiometer, SMT-100 soil moisture sensor, weighing system |
Atmosphere Unit:
|
Material |
Semitransparent, mirrored PMMA |
|
Sensors |
Humidity, temperature, PAR |
Sun simulator:
|
LED lighting |
plant physiological spectrum in the range of 400 - 750 nm with up to 500 µmol / m²s on the soil surface |
