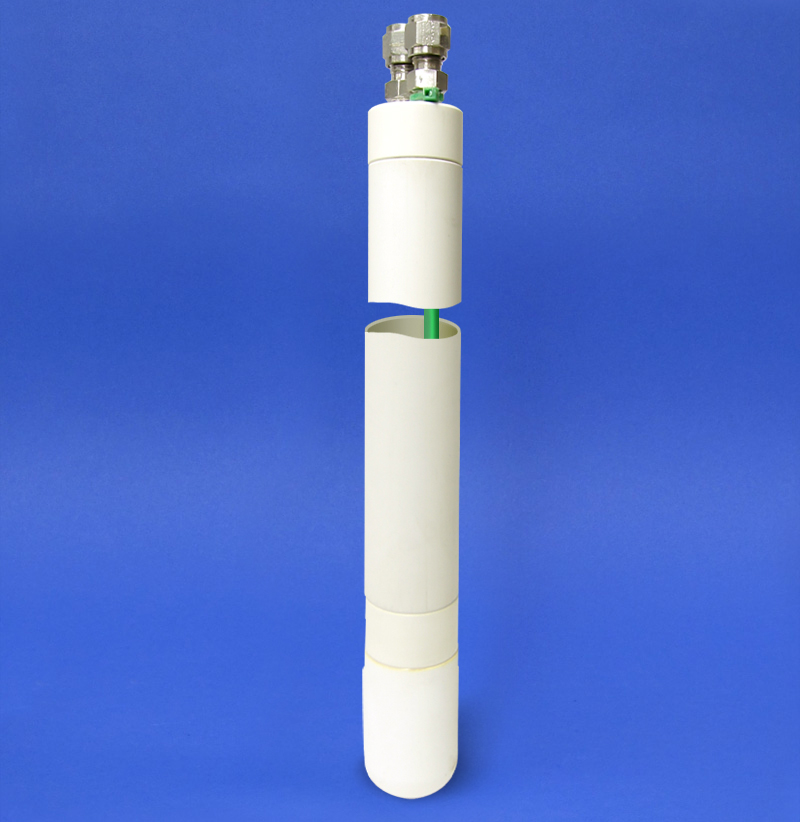

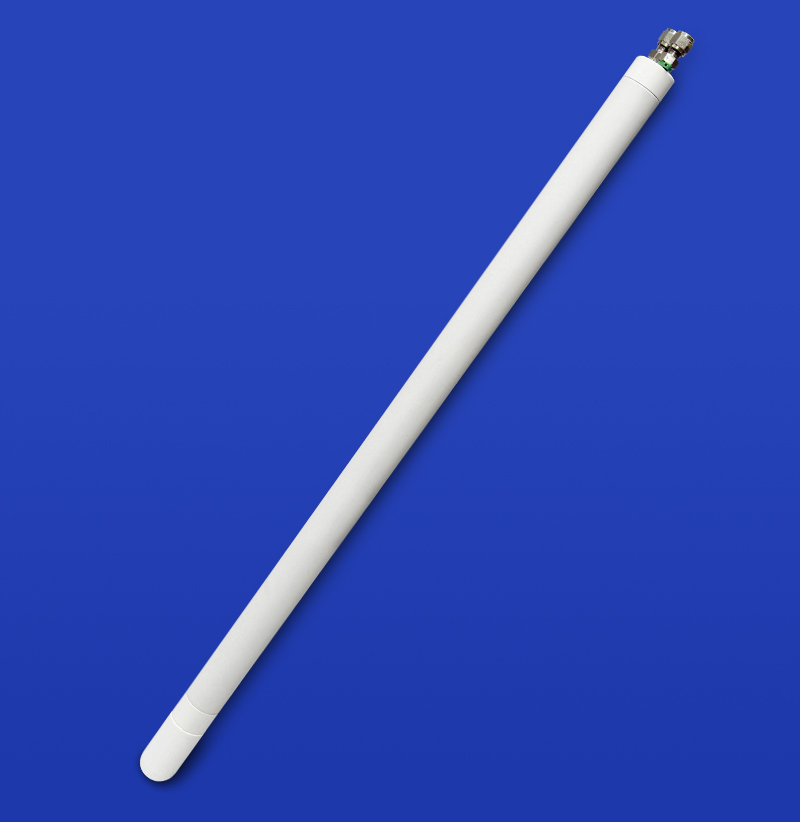

Hi-Pressure / Vacuum Soil Water Sampler
The 1940 Soil Water Sampler is used for deep sampling down to 300 foot (100 m) depths, or where long lateral runs are required. The sampler consists of a 2 bar (200 kPa) ceramic cup, PVC body, and an end cap. High-pressure compression fittings allow connection of polyethene vacuum and pressure tubing. The sampler is 1.9" (4.8 cm) in diameter and 27" (68.6 cm) long. Thick-wall PVC tubing and internal check valves allow for safe, high-pressure use, without risk of damage or sample loss.
- Pore Water Sampling
- Environmental Monitoring
- Mining
- Soil Moisture Hi-Pressure / Vacuum Soil Water Sampler used for deep sampling down to 300 foot (100 m) depths, or where long lateral runs are required.
- Consists of a 2 bar (200 kPa) ceramic cup, PVC body, and an end cap.
- High-pressure compression fittings allow connection of polyethene vacuum and pressure tubing.
- The sampler is 1.9" (4.8 cm) in diameter and 24" (60 cm) long.
- Thick-wall PVC tubing and internal check valves allow for safe, high-pressure use, without risk of damage or sample loss.
- Installation depth up to 300ft.
Sampling depth: down to 300 ft (or for long lateral runs)
Sampler length: 27" (68.6 cm),
Diameter: 1.9" (4.8 cm),
Weight: 4.00 lbs.,
Box dimensions: 32X5X5 inches.
