Remote Soil Water Sampler
- High flow ceramic, 1 bar (100 kPa) bubble pressure.
- Minimal dead volume.
- Remote access.
- Continuous soil solution collection.
- Installation depth 6 inches to 10 feet.
- Includes two nylon fittings: one for 1/4" O.D. tubing and one for 1/8" O.D. tubing.
- The 1900K3 1000 ml Extraction Kit is recommended,
- An extra vacuum reservoir or a continuous vacuum source is required.
- ASTM: D4696-92(2000).
- Pore Water Sampling
- Environmental Monitoring
- Mining

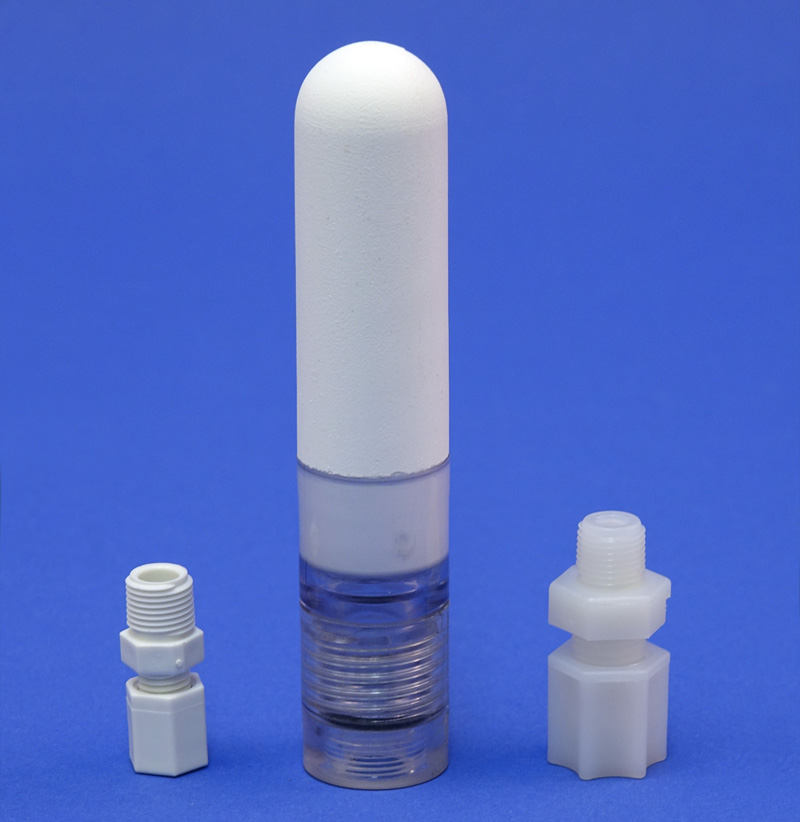

- Soil Moisture Remote Soil Water Sampler designed for continuous soil solution collection from remote sites where minimum disturbance to the soil surface is desired.
- Can be installed at depths ranging from 6 inches to 10 feet, with the collection vessel situated in a site adjacent to the study plot.
- The porous ceramic has high-flow characteristics, high alumina content for low adsorption, and moderate bubbling pressure (1 bar or 100 kPa).
- The sampler has two nylon fittings: one for 1/4" O.D. tubing and one for 1/8" O.D. tubing.
- The 1000 ml Extraction Kit is recommended, and a continuous vacuum source is required for the operation of the Sampler.
Installation/Sample Depths: 6" to 10 ft.
Weight: 0.13 lb.
