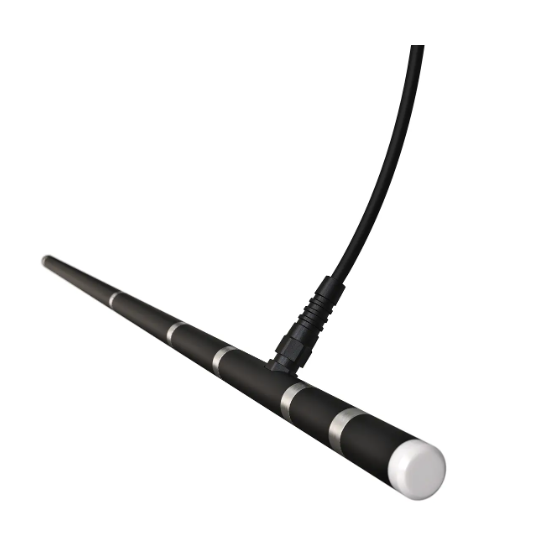

The research-grade TEROS 06 soil temperature profile probe accurately measures and records soil temperature over time at six depths exceeding WMO recommendations. It is regualrly used in the field and in lysimeters. TEROS 06 contains digital sensors at -5cm, -10cm, -20cm, -30cm, -50cm, -100cm. And, unlike other profile probes on the market, every TEROS 06 sensor is individually calibrated for the highest possible accuracy (±0.1°C).
Minimize Soil Disturbance
TEROS 06 has a small diameter of 20mm to minimuze soil disturbance, plus it was specifically engineered to elimintate heat transfer. The fiberglass-reinforced plastic body has a very low thermal conductivity, so there is no temperature carryoevr between profile laters. Stainless steel rings ensure excellent heat conductance from the soil to the sensor, so you know you're only measuring soil temperature at a precise location.
- Measures six depths exceeding WMO recommendations

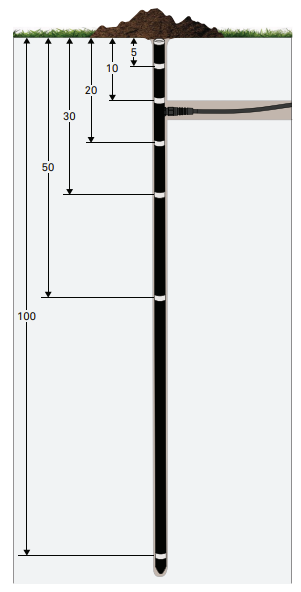

- Temp sensors at -5cm, -10cm, -20cm, -30cm, -50cm, -100cm
- Temperature accuracy: ±0.1°C
- Plug and play with ZL6 data logger, Campbell Scientific datalogger and more.
- Data visualisation on ZENTRA Cloud or Campbell Scientific PC400/Loggernet.
| Measuring Depths | 5cm, 10cm, 20cm, 30cm, 50cm, 100cm |
| Temperature | -20°C to 50°C |
| Resolution | ±0.03°C |
| Accuracy | ±0.1°C (0°C to 30°C), ±0.2°C (-20°C to 50°C) |
| Signal Output | SDI-12, RS-485 |
| Operating Temperature Range | -30°C to 60°C |
| Materials |
Shaft: PA66GF30 Sensor Elements: Stainless steel |
| Cabel Length |
Standard: 4.5m Max. Length: 75m |
