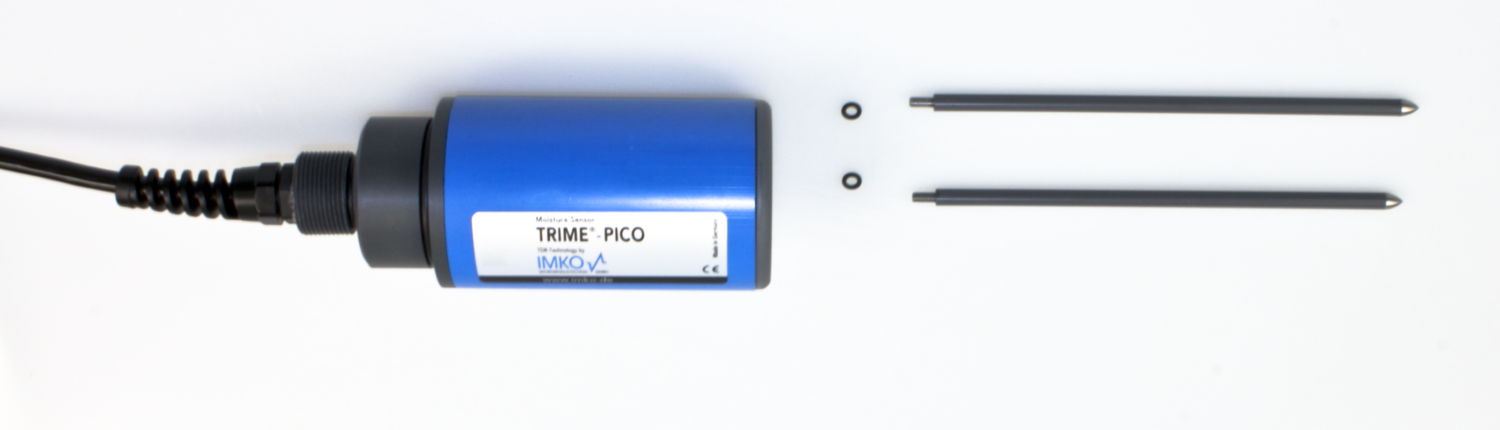

TRIME-PICO 64
The intelligent rod sensor PICO64 is ideal for monitoring systems that determine soil moisture, temperature and electrical conductivity in soils and other porous materials. The integration of a probe and TDR evaluation electronics is unique so far.
Our TRIME TDR probes measure soil conductivity, moisture and temperature on a volumetric basis. It determines the salinity in mg salt per Liter water for different soils at varying levels of moisture without complicated laboratory measurements. Because of the mechanical robustness TRIME-PICO64 is optimal for mobile users with our Bluetooth module PICO-BT or the robust hand-held meter HD2.
Applications and benefits
- Moisture measurement in soils and many more materials
- A solid solution for heterogeneous and stony soils
- Measurement of water content, temperature, electrical conductivity and salinity
- A maximum of accuracy and network capability are reached
- Sensor networks of up to 3 km length are possible
- Precise measuring results are guaranteed even in heterogeneous and skeletal soils
- TRIME-PICO64 is unaffected by high temperatures or conductivities
- Includes an integrated temperature sensor
- SDI-12 interface
- Measuring range of 0..100 vol. %
- Operational up to more than 12dS/m bulk soil conductivity
- Measuring volume > 1250ml
- Robust (IP68) and for long-term installations suitable
- Installation could be vertically or horizontally
