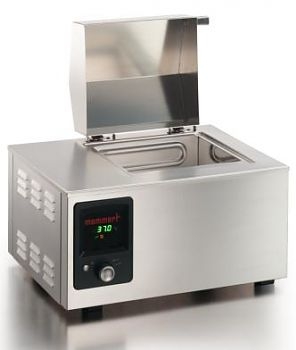

Water Bath WNB7
The combination of corrosion-resistant stainless steel, precise electronics and multiple temperature protection guarantees the highest level of safety in the laboratory.
- Memmert Water Bath WNB7 are electrically heated, with thermostatic regulation.
- The microprocessor temperature regulation guarantees minimum temperature fluctuations (±0.1°C), short heat-up times and lowest possible overshooting of the selected temperature.
- The target temperature value entry is achieved digitally and can be locked against inadvertent change.
- The actual temperature is displayed on a clear LED-display.
- The integrated digital clock, working independently of temperature, has a runtime of 1 minute to 99,95 hours.
- All values are shown on the LED-display.
- The self-diagnostic system integrated with the regulator enables quick troubleshooting in the case of errors.
- Very easy cleaning.
- Completely made of stainless steel.
Temperature
| Setting temperature range | +10 to +95 °C and boiling stage |
|---|---|
| Working temperature range in °C | min. 5 above ambient up to +95 °C with additional boiling mode |
Control of standard components
| Temperature sensor | 1 Pt100 sensor class A in 4-wire-circuit |
|---|---|
| Timer | integrated digital timer from 1 min. to 99,59 hours for: ON continuous operation WAIT (delayed on for continuous and limited timed operation) HOLD |
Safety
| Temperature control | mechanical temperature limiter TB protection class 1 switching the heating off at approx. 30°C above max. the temperature of the bath |
|---|---|
| Temperature control | in case of overtemperature due to failure, the heating is switched off at approx. 10°C above the set temperature (fixed value) |
| Autodiagnostic system | microprocessor PID-temperature controller with integrated auto diagnostic system with fault indicator |
Heating concept
| Heating Baths | corrosion-proof large-area heating on three sides |
|---|
Standard equipment
| Controller | digital display (LED) of the set and the actual temperature (0,1°C resolution) and of (remaining) programme time |
|---|
Stainless steel interior
| Dimensions W x H x D in mm | w(A) x h(C) x d(B): 240 x 140 x 210 mm |
|---|---|
| Interior | easy-to-clean interior, made of stainless steel, reinforced by deep drawn ribbing, material no. 1.4301 (ASTM 304), laser-welded |
| Volume | 7 l |
| Liquid level min. | (H) 97 mm |
| Liquid level max. | (I) 120 mm |
Textured stainless steel casing
| Dimensions | w(D) x h(G) x d(E): 468 x 337 x 356 mm |
|---|
Electrical data
| Voltage | 230 V, 50/60 Hz |
|---|---|
| Electrical load | approx. 1200 W (during heating) |
Ambient conditions
| Installation | The vent openings in the left and back side must remain unobstructed. Minimum wall spacing on all sides is 80 mm. The minimum spacing from the top of the bath to the next ceiling is 750 mm. |
|---|---|
| Ambient temperature | +5 °C to +40 °C |
| Humidity RH | max. 80 %, non-condensing |
| Overvoltage category | II |
| Pollution degree | 2 |
Packing/shipping data
| Transport information | The appliances must be transported upright |
|---|---|
| Customs tariff number | 8419 8998 |
| Country of origin | Federal Republic of Germany |
| WEEE-Reg.-No. | DE 66812464 |
| Dimensions approx incl. carton | w x h x d: 570 x 450 x 420 mm |
| Net weight | approx. 11 kg |
| Gross weight carton | approx. 16 kg |
