For High & Low Light Measurements

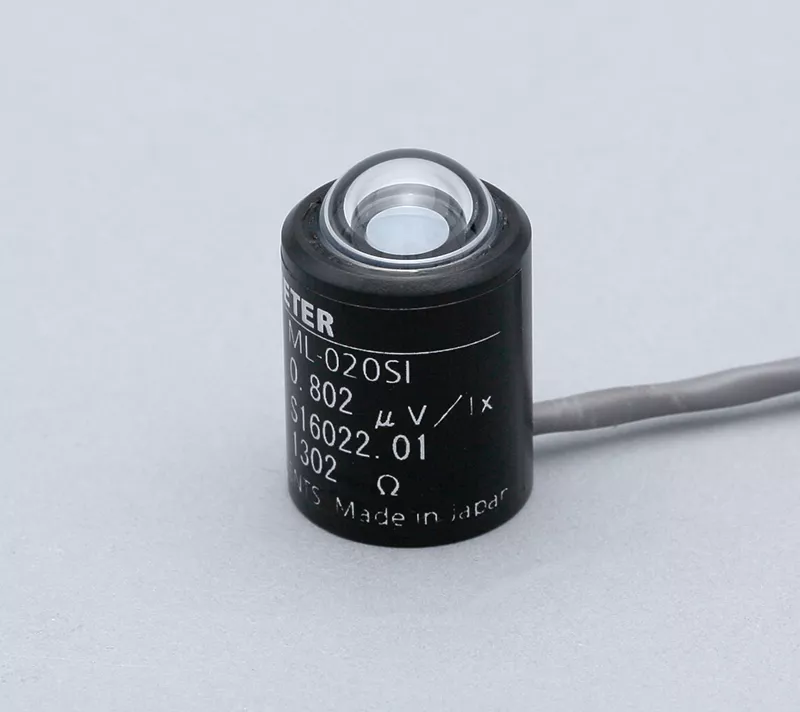

The ML-020S-I Lux Sensor is an all-weather device with a customised detector sensitivity for indoor low light level or outdoor high light level applications.
The ML-020S-I illuminance sensor is an all-weather sensor with a customised detector sensitivity, optimised for indoor low light level or outdoor high light level applications.
In conjunction with the detector spectral response, the built-in interference filter reproduces the CIE photopic curve and gives a calibrated output in lux (lx).
The low output Voltage of the sensor can be easily converted to a 4-20mA current or higher Voltage using the MS-4.20mA converter. The mV/mA converter can be pre-programmed and optimised within the operating range compatible with standard measurement equipment.
Together with the MS-020S-O Lux Sensor, the ML-020S-I is often deployed in professional applications, controlling or monitoring industrial processes.
- Fast response time (10ms)
- CIE Photopic response
- Glass dome plus diffusor optics
- Low temperature dependency
- Suitable for indoor & outdoor measurements
| Irradiance range | 0 to 30000 Lx |
| Output | 0 to 30000 μV |
| Impedance | 1,300 Ω |
| Operating temperature range | -10 to 50 °C |
| Temperature response -10°C to 50°C | 0.4 % |
| Cable length | 5m (10/30/50m) |
| Leveling plate | Optional |
