750w² Portable Suspended Solids Monitor

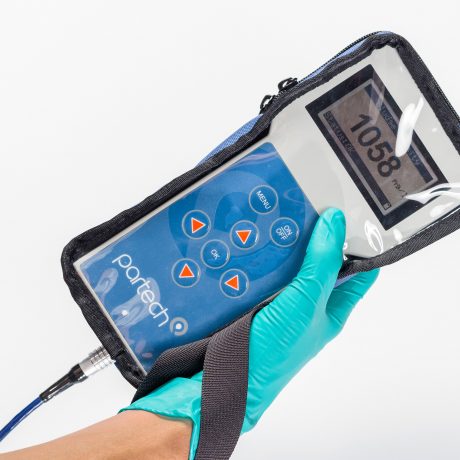

The new handheld water quality monitor is a simple, robust and accurate tool for measuring a full set of water quality parameters with a single unit. The 750w² has been designed to expand on the parameters by allowing a suite of interchangeable water quality sensors to be connected via military grade cable connectors, initially covering Suspended Solids measurements from intake to discharge via the all important activated sludge process.
The rugged unit has a built in data recorder for storing a minimum of 500 data points.
The simple to use interface, multiple sensor options and field ready design makes the new monitor the market leader for on site monitoring of TSS, Turbidity and Sludge Level.
Sensor Selection:
- SoliTechw² IR Sensor 0 - 200
- SoliTechw² IR Sensor 0 - 1,500
- SoliTechw² IR Sensor 0 - 10,000
- SoliTechw² IR Sensor 0 - 30,000
| SoliTechw² IR Sensor 0 - 200 | |
| Range | 0-200 |
| Accuracy | ±5% of measured value or ±1 mg/l whichever is greater |
| Limit of Detection | 1 mg/L |
| Minimum Operating Range | 0 -20 mg/L |
| SoliTechw² IR Sensor 0 - 1,500 | |
| Range | 0-1,500 |
| Accuracy | ±5% of measured value or ±7.5 mg/l whichever is greater |
| Limit of Detection | 7.5 mg/l |
| Minimum Operating Range | 0 - 150 mg/l |
| SoliTechw² IR Sensor 0 - 10,000 | |
| Range | 0-10,000 |
| Accuracy | ±5% of measured value or ±50 mg/l whichever is greater |
| Limit of Detection | 50 mg/l |
| Minimum Operating Range | 0 - 1000 mg/l |
| SoliTechw² IR Sensor 0 - 30,000 | |
| Range | 0-30,000 |
| Accuracy | ±5% of measured value or ±150 mg/l whichever is greater |
| Limit Of Detection | 150 mg/l |
| Minimum Operating Range | 0 - 3000 mg/l |
| Protection Class | Electronics: IP65 Sensor: IP68 |
| Enclosure Material | Monitor: ABS Sensor: Black Acetal Co-Polymer Bag: Nylon |
| Power Source | Internal Rechargeable Battery Pack |
| Battery Life | 1 week normal use (30 measurements per day) between charges Under normal operating conditions e.g. normal contrast and brightness settings |
