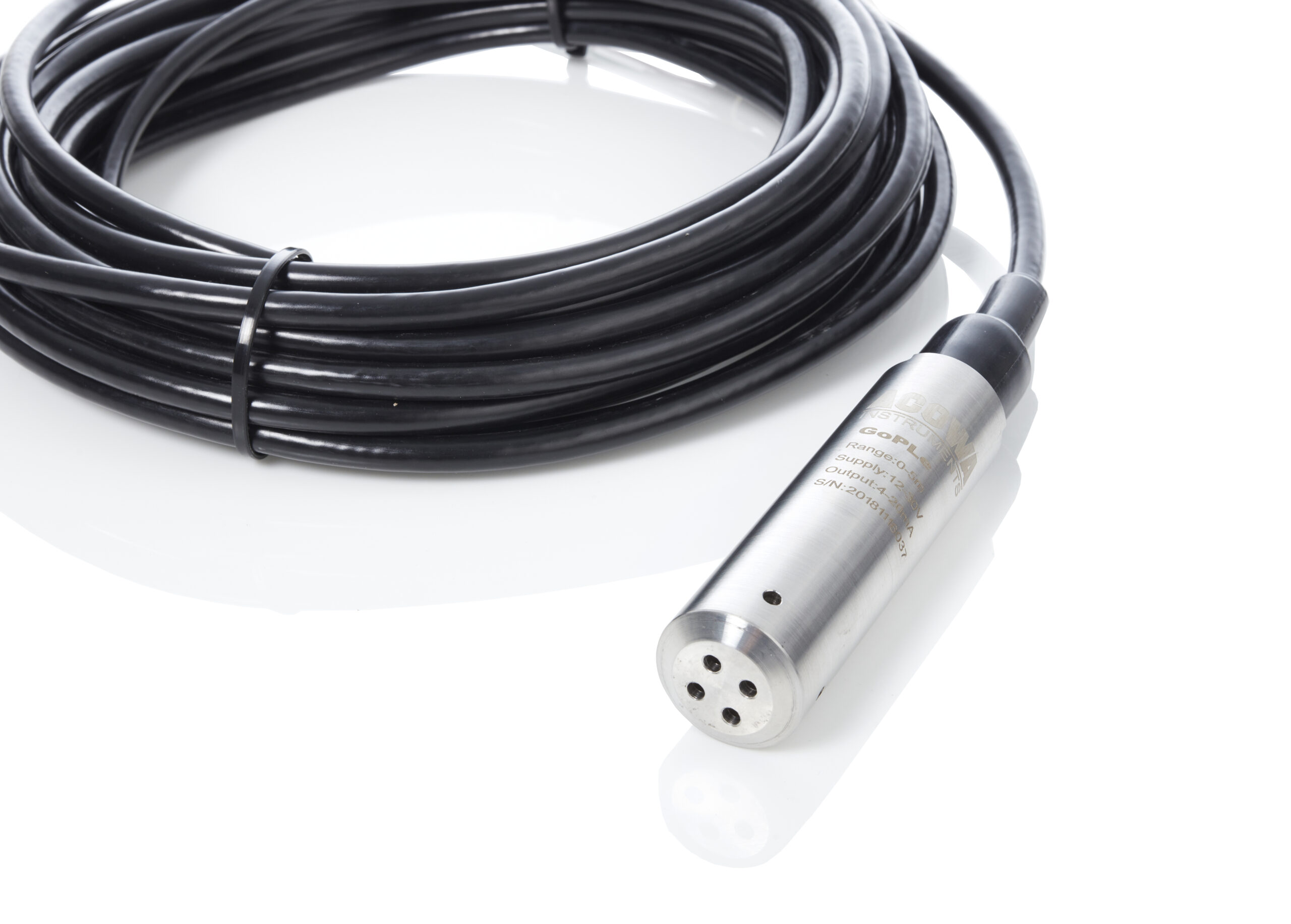

GoPle Hydrostatic Pressure transmitter
GoPLe level sensor is used for level measurement in drinking water and sewerage water systems. GoPLe is synonymous with high reliability as well as stability in level measurements. GoPLe measures by using ceramic capacitive measurement principal, and upon submersion converts the liquid level to a 4-20mA current loop
The GoPLe level sensor is available in 6 measuring ranges and with a fixed cable length. Individual measuring range and cable length can be offered on request.
- Pumping Stations
- Sewage Treatment Plants
- Stormflow
- Level Monitoring
- Rivers and Streams
- Reservoir and tanks
- Groundwater Monitoring
- Waterworks
| Specifications: | |
| Materials | Housing in stainless steel |
| Measuring range | 0-3m, 0-4m, 0-5m, 0-6m or 0-10m |
| Measuring principle | Ceramic capacitive |
| Output signal | 4-20mA |
| Accuracy | Better than 0,5 % of FS |
| Long term stability | Better than 0,25% of FS per year |
| Supply voltage | 12-36V DC |
| Temperature range | -40°C to +80°C |
| Resistance | 100MΩ@ 50V DC |
| Enclosure class | IP68 |
| Membrane material | Ceramic capacitive |
| Response time | 10ms |
| Lenght of cable | 10m or 25m |
| Type of cable | Highly flexible PUR cable with screen |
| Total weight | 760g included 10m cable |
| Certificates | CE |
