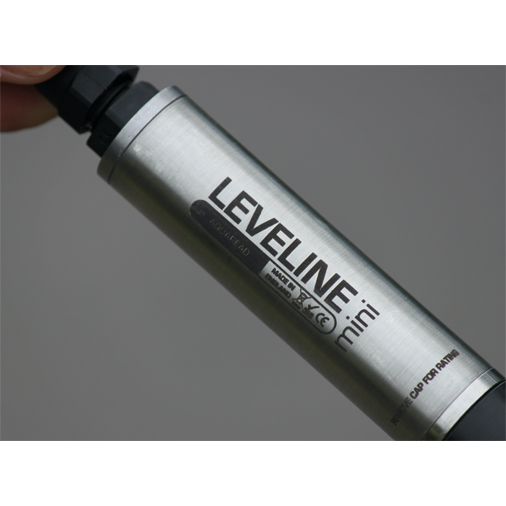

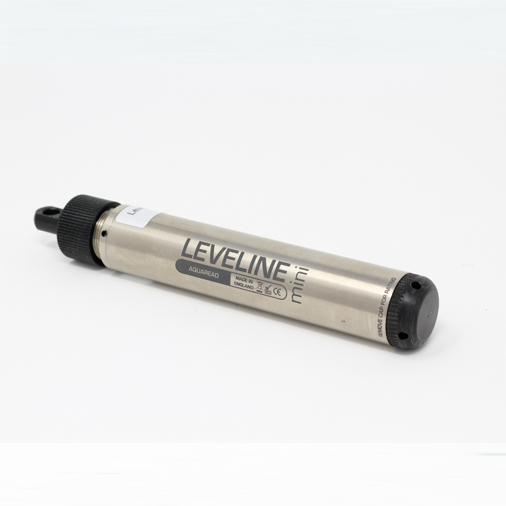

LEVELINE-MINI
• Groundwater level monitoring, pump tests, slug tests etc.
• Stream, lake and reservoir water level measurement.
• Wetland and flood water monitoring.
• Coastal monitoring.
• Tank level measurement.
• Long term continuous monitoring in boreholes, surface water and seawater applications.
• Process applications.
• Flood warning systems.
- 0.05% FS accuracy.
- Titanium body.
- SDI-12, RS485/MODBUS direct out communications.
- Vented option available
- LeveLine Mini-CTD version available for salinity and EC measurements.
| Temperature ranges | Operational: -20-80° C (-4-176° F) Storage: -40-80° C (-40-176° F) Compensated: -20-80° C (-4-176° F) |
| Diameter | 22mm |
| Length | 87mm |
| Weight | 120g |
| Materials | Titanium body, Delrin nose cone |
| Output options | Modbus/RS485, SDI-12, Aquaread proprietary |
| Battery type & life | 3.6V lithium; up to 10 years (see note 1) |
| External power | 6 - 24 VDC |
