The sensors is in moulded housing. The sensor is constructed with a 1" thread, for easy mounting.
-
Use MJK Ultrasonic sensors with MJK Shuttle level transmitters, flow converters and pump controllers.
-
The Ultrasonic sensor has a moulded piezo-electrical crystal which emits the ultrasonic pulse and receives the echo signal from the surface to be measured.
-

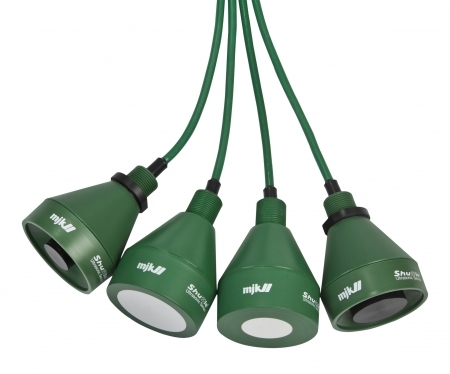

There are four sensors to choose from depending on the application:
STANDARD RANGE VERSION
-
Ultrasonic sensor type 200570
-
Frequency 30 KHz
-
Range up to 15 m in fluids and 5 m in solids
-
POM membrane and PP house
STANDARD RANGE VERSION
-
Ultrasonic sensor type 200640 / 200641 / 200642 Frequency 40 KHz
-
Range up to 12 m in fluids and 5 m in solids
-
PTB membrane and PP house
-
FM Approved
EXTENDED RANGE VERSION
-
Ultrasonic sensor type 200630 / 200631 / 200632
-
Frequency 30 KHz
-
Range to 25 m in fluids and 10 m in solids
-
PTB membrane and PP house
-
FM Approved
CHEMICAL RESISTENT VERSION
-
Ultrasonic sensor type 200660
-
Frequency 50 KHz
-
Range up to 10 m in fluids and 5 m in solids
-
PVDF membrane and PP house
