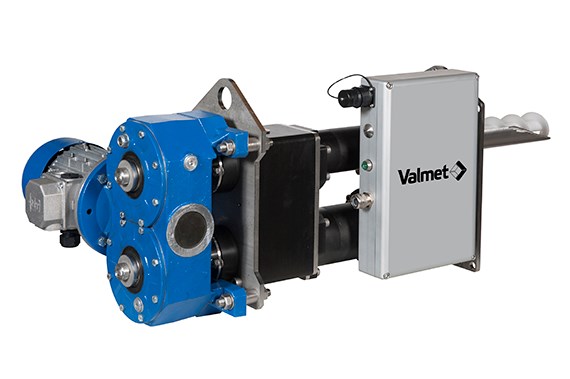

Valmet High Solids Measurement - Valmet HS
Continuous accurate measurement of over 30% total solids for a wide range of industrial applications utilizes microwave technology to make a continuous and accurate solids measurement. Valmet HS makes it possible to optimize total solids levels and follow up in real time the performance of dewatering or drying processes.
- Above 30% solids (1...70% moisture)
- More accurate process control, chemical and energy savings
- Reliable screw based sampling
- Built in calibration routine
- Industrial Internet remote access
Controls using the accurate dry solids measurement provided by Valmet HS can be used to fully optimize a variety of processes.
- Sludge Measurements
- Paper Mill HC roll press
- Pulp and Paper
- Wood processing industry
- Municipal waste water
- Moisture measurements in other industries
Sludge measurements
- Optimized flocculent addition
- Enables higher solids
- Reduced transportation costs
- Better control of combustion
- Reduced supplementary fuel use
Paper Mill HC roll press
- Stable and accurate consistency to refining
- Better pulp quality to paper machine
- Energy saving potential
- Press maintenance savings
Pulp and paper
- Wastewater treatment plant sludge, High Consistency pulp from roll press, De-inking plant reject moisture measurement
Wood processing industry
- Saw dust moisture measurement before pelleting
Municipal waste water
- Sludge moisture measurement before incineration, Control of thermal drying process
Moisture measurements in other industries
- Starch, Sugar, Gypsum
| Sensor Material | HDPE/ Body A1 |
| Measuring Range | 0...70 % Moisture-% |
| Material Measured | Saw Dust, municipal and industrial waste water sludge, HC Pulp, Starch, other applications coming up all the time |
| Temperature Range | +0...65°C (High Temperature version max 95°C) |
| Repeatability | 0.1% Theoretical value of the sensor |
| Resolution | 0.01% Theoretical value of the sensor |
| Mill System Interface Power | 4...20mA, Ethernet 24VDC (measuring electronics) 3 phase AC (sample screws)* |
| IP-Classification | IP65 |
