Easy to use, integrated multi-parameter weather station for marine applications
Designed and manufactured by Gill Instruments in the UK, MaxiMet® advanced compact weather stations use proven technology to measure meteorological and environmental parameters to international standards.
Cost, quality and performance requirements are met by MaxiMet® which incorporates many measurement parameters required for demanding applications including: wind, precipitation, solar radiation, temperature, humidity, pressure, low power ‘Eco Mode’, GPS, compass and many more.
Output protocol options for MaxiMet® include RS232, RS422, RS485, SDI-12, MODBUS & NMEA ensuring MaxiMet® is easy to install and easy to use.
Environmental protection to IP66 across all MaxiMet® models and MaxiMet® Marine GMX560 to IP66 and IP68.
Ultrasonic technology is used in MaxiMet® models to deliver highly accurate measurements with no moving parts to wear or recalibrate. As a result, MaxiMet® is extremely reliable and low maintenance.
Available parameters: Wind speed and direction, air temperature, relative/absolute humidity, pressure, precipitation, solar radiation, GPS coordinates / MSL (Mean Sea-Level) pressure / true wind / clock / longitude and latitude / sunrise / sunset / twilight, ground speed, compass, 2D coordinate/apparent, wind, location, height above sea level, averaging (World Meteorological Organization), gust (World Meteorological Organization), air density, barometric pressure, wet bulb, dew point, wind chill, sensor status information, heat index and more…

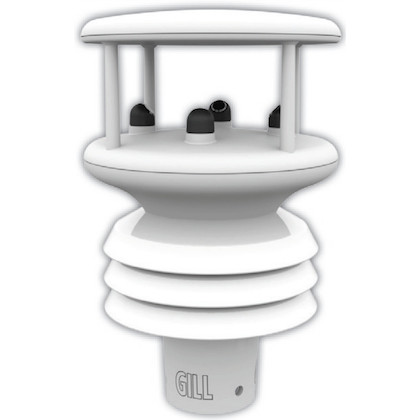

- MaxiMet Marine GMX560 provides 5 measured parameter: Wind-speed & Direction, Temperature, Humidity, Pressure and optional GPS function
- IP 68 & IP66 environmental protection
- 6-axis compass
- High-quality, accurate, solid-state sensors
- Compact design with robust construction
- Commonly available connector suitable for corrosive environments
| Wind Speed | |
| Range | 0.01 m/s to 60 m/s |
| Accuracy | ± 3% RMSE to 40 m/s, ± 5% RMSE to 60 m/s |
| Resolution m/s | 0.01 |
| Starting Threshold | 0.01 m/s |
| Sampling Rate | 1 Hz |
| Units | m/s, km/hr, mph, kts, ft/min |
| Wind Direction | |
| Range | 0-360° |
| Accuracy | ± 3% RMSE to 40 m/s, ± 5% RMSE to 60 m/s |
| Resolution m/s | 0.01 |
| Starting Threshold | 0.01 m/s (0.05 m/s default) |
| Sampling Rate | 1 Hz |
| Units | degrees |
| Temperature | |
| Range | -40°C to +70°C |
| Resolution | 0.01 |
| Accuracy | ± 0.3°C @ 20°C |
| Sampling Rate | 1 Hz |
| Units | °C, °F, °K |
| Humidity | |
| Range | 0-100% |
| Resolution | 1% |
| Accuracy | ± 2% @ 20°C (10%-90% RH) |
| Sampling Rate | 1 Hz |
| Units | % RH, g/m3 |
| Dew Point | |
| Range | -40°C to +70°C |
| Accuracy | 0.1 |
| Resolution | ± 0.3°C @ 20°C |
| Sampling Rate | 1 Hz |
| Units | °C, °F, °K |
| Pressure | |
| Range | 300 to 1100 hPa |
| Accuracy | ± 0.5 hPa @ 25°C |
| Resolution | 0.1 hPa |
| Sampling Rate | 1 Hz |
| Units | hPa, Nbar, mmHg, inHg |
| Output | |
| Output rate | 1/s, 1/min, 1/hr |
| Digital Comms Modes | Serial RS232, RS422, RS485, SDI-12, NMEA, MODBUS, ASCII |
| Analogue Outputs | Available via separate optional device |
| Power | |
| Power Supply | 5 to 30 Vdc |
| Power (Nominal) 12 Vdc | 25 mA continuous high mode. 0. mA eco-power mode (1 hour polled) |
| Environmental Condition | |
| IP Rating | IP66 & IP68 |
| Operational Temperature Range | -35°C to +70°C |
| Storage Temperature Range | -40°C to +80°C |
| Humidity | 0% to 100% |
| Weight | 0.7 kg |
| Origin | UK |
