NIST Traceable Calibration
900 nm to 1700 nm
Temperature-controlled & optimised to provide the most accurate irradiance measurement data within the spectral range from 900nm and 1700nm (Visible-NIR).

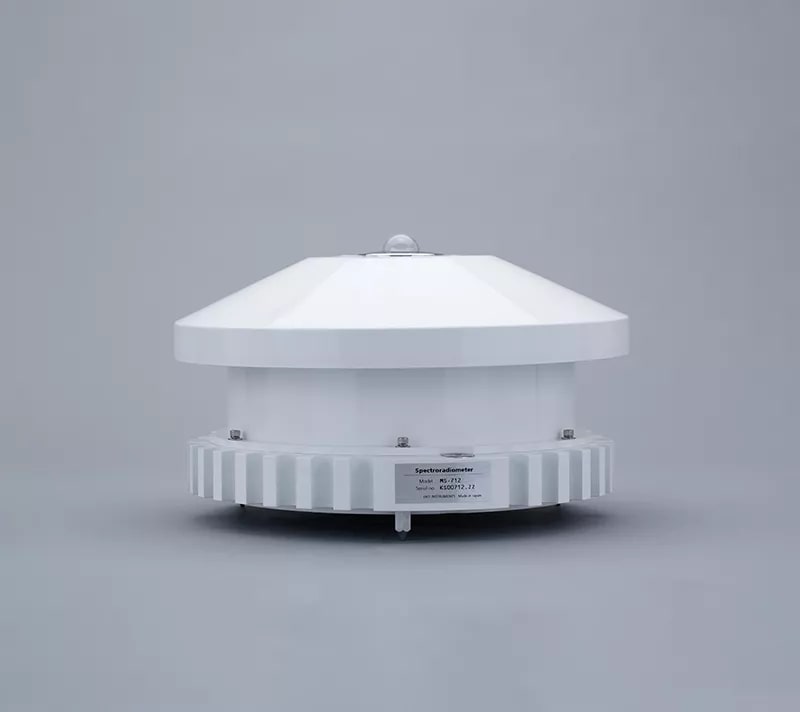

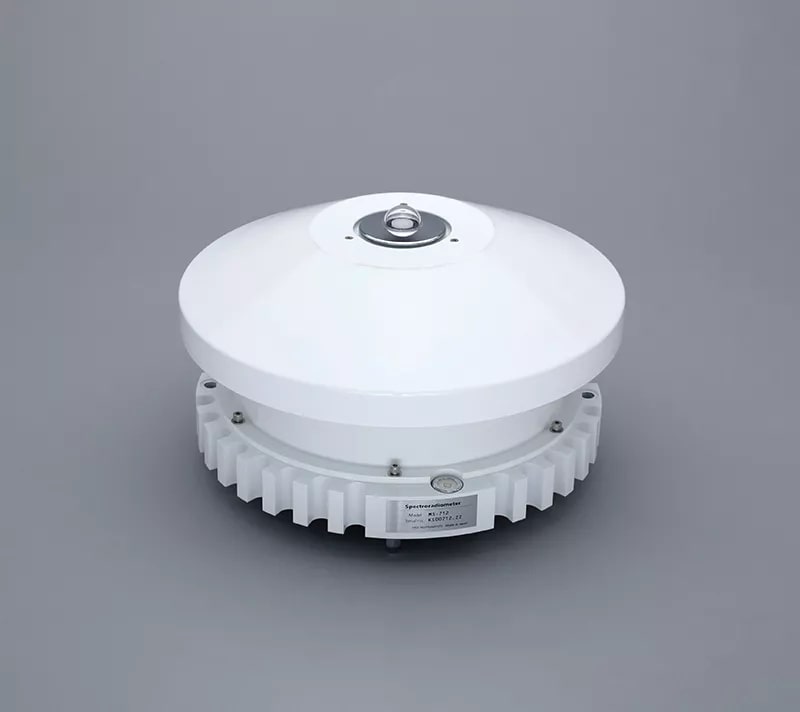

A unique all-weather sensor, the MS-712 features a temperature-controlled detector, ensuring optimum performance in hot and cold conditions ranging from -10 to 40°C.

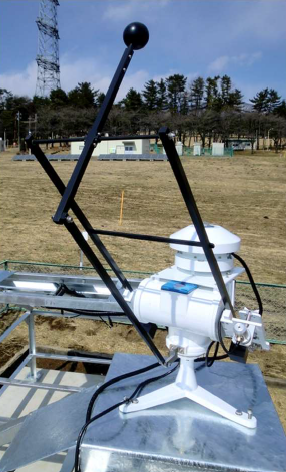

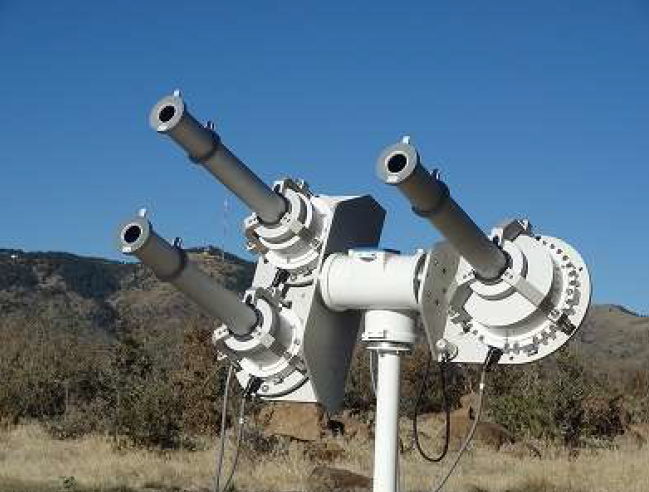

Measuring the near-infrared (NIR) range from 900nm to 1700nm, the MS-712 comes with NIST traceable calibration, a calibration uncertainty budget, and is compatible with EKO STR-Series sun trackers.
The MS-712 is commonly paired with the MS-711N as part of the WISER I system to cover the spectral range from 300nm to 1700nm (UV-VIS-NIR).
The new generation grating and rugged optical design of the diffusor and input optics in the MS-712 make it superior to any fiber-optic based spectroradiometer by eliminating common issues with mechanical vibration and handling; ideal for permanent installation or as a travelling reference.
The MS-712 has a separate power supply and can be controlled through RS232 / 422 via a PC or data logger. EKO also provides software options for device and data management and visualisation.
EKO Spectroradiometers deliver top-tier spectral measurements and detail about energy distribution (W/m2/nm), essential for effective PV or CPV cell research and performance analysis.

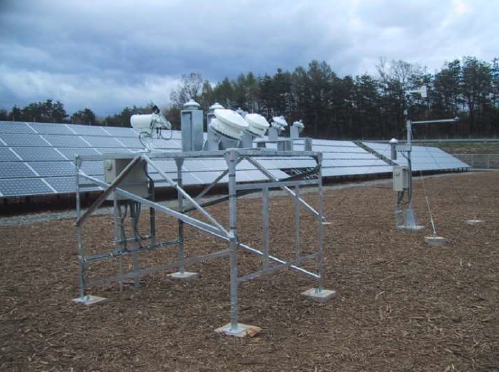

- Robust design, made for outdoor solar research
- Temperature controlled detector core
- Excellent long term stability & low temperature dependency
- High optical resolution <7nm
- NIST Traceable calibration
- Compatible with EKO STR-Series Sun Trackers
| Wavelength range | 900 to 1700 nm |
| Optical resolution FWHM | < 7 nm |
| Wavelength accuracy | ± 0.2 nm |
| Directional response at 1000W/m² | - |
| Temperature response -10°C to 50°C | < 5 % |
| Temp. control | -5 °C |
| Operating temperature range | -10 to 40 °C |
| Exposure time | 10 to 5000 msec |
| Dome material | BK7 |
| Communication | RS-422 / 232C |
| Power supply | 12VDC, 50VA |
| Dimensions mm | 300 (D) x 200 (H) |
| Weight | 7.5 kg |
| Ingress protection IP | 65 |
| Power supply (Power Adapter) | 100-240VAC, 50/60Hz |
| Power consumption | 65 W |
| Power supply operating conditions | -10 to 40°C / 0 to 90 %RH |
| Power supply dimensions (mm) | 320 (W) x 240 (D) x 180 (H) |
| Power supply weight | 1 kg |
| Program | Analysis software WSDAc |
| OS | Microsoft Windows 7/8/9/10 |
| Functions | Display and analyse data |
| Cable length | 10 m (20m / 30 m) |
| Field of View (FOV) | 180 ° |
