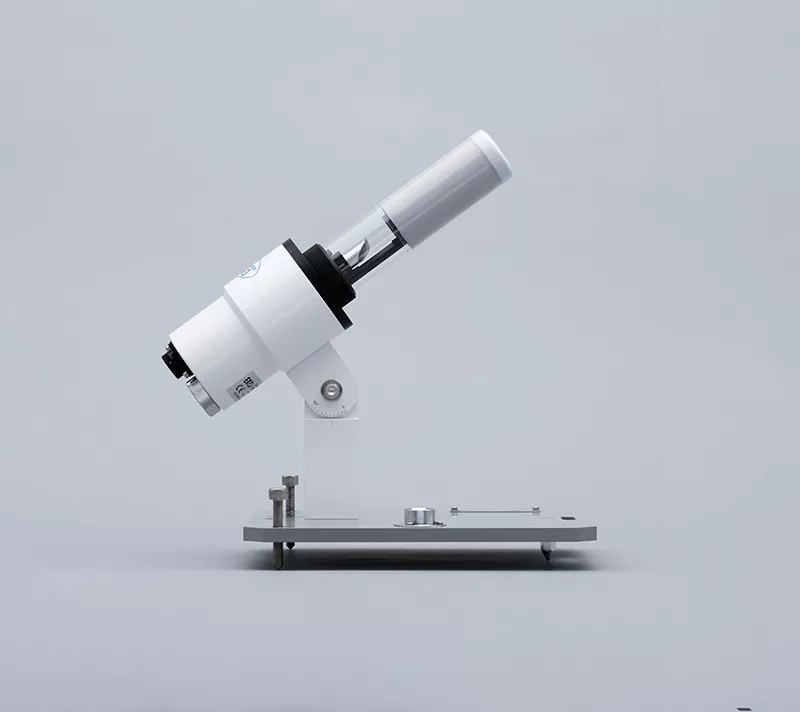

MS-90 DNI Sensor
No Sun Tracker Required
A revolutionary design with proven reliability, the MS-90 is made to measure Direct Normal Irradiance (DNI) without a sun tracker based on a unique rotating mirror design that reflects the sunbeam onto a thermal detector.
A revolutionary design with proven reliability, the internal rotating mirror of the MS-90 DNI Sensor is based on the hugely successful MS-093 sunshine duration meter, deployed across Japan for over 10 years at over 800 AMeDaS network weather stations.
Designed to accurately measure Direct Normal Irradiance (DNI) without a sun tracker, the MS-90 is ideal for solar energy monitoring systems and meteorological networks.
- DNI measurement (<10% uncertainty)
- Cost-effective, no sun-tracker required
- Spectral range 300 - 2500nm
- Low maintenance, with no external moving parts
- Pulsed analog output 0-2V
- Optional C-Box with GPS and Modbus output
| DNI Measurement Uncertainty | <5% (@>700W/m2) |
| Operating Temperature Range | -20 to 50°C |
| Wave-Length Range | 300 to 2700nm |
| Power Supply | 10.5 to 12.5VDC |
| Power Consumption | 400 to 470mA |
| Dimensions (mm) | 350 (W) x 250 (L) x 200 (H) (including optional base plate) |
| Weight (kg) | 2.5 |
| Geographic Application | Latitude (-58° to 58°) / Longitude (0° to 360°) |
| Standard Cable Length | 10m (Optional Lengths: 20m, 30m, 50m) |
