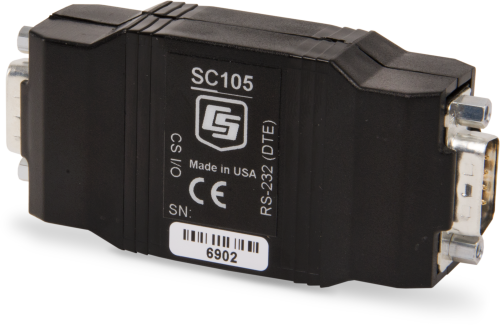

SC105 CS I/O to 9-Pin RS-232 DCE Synchronous Interface
The SC105 is a CS I/O to RS-232 adapter used to connect a Campbell Scientific data logger to an RS-232 DCE device. Common DCE devices used with the SC105 include cellular modems, radios, and smart serial sensors. The SC105 is compatible with any data logger that has a CS I/O port. Multiple SC105 interfaces can be connected to a single data logger CS I/O port.
The SC105 provides internal buffering that temporarily stores data. This buffering allows the data logger and DCE device to operate at different baud rates by storing the data received from the faster device until the slower device is ready to receive it. Internal buffering also ensures that no data is lost during transmission.
| Baud Rates Supported | 1200, 9600, 19200, 38400, 57600, 115200 bps |
| RS-232 Parity Supported | Even, odd, none |
| RS-232 Data Bits Supported | 7, 8 |
| CS I/O Port Modes | CSDC, SDC, ME, Addressed Print Device for P96 output |
| Power Requirements | Data logger’s 5 V supply |
| Current Drain |
|
