- WMO Compliant

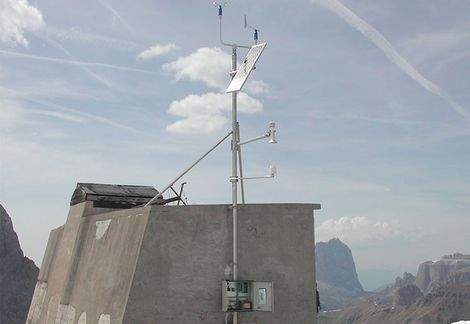

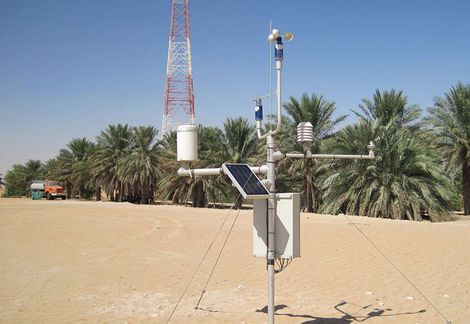

- Robust weather station consisting of meteorological sensors, SEBA measuring data collector, data transmission (optional), independent power supply, protective housing and a mast
- Sensors: precipitation, air pressure, air temperature /humidity, wind direction /speed, soil temperature, global radiation, evaporation, snow depth, snow scales, snow temperature, etc.
Modular:
The automatic SEBA weather station AWS is a modular system that can be individually configured as desired. Here, the AWS is particularly distinguished by the wide range of durable, high-quality (first-class) sensors.
Data available worldwide:
In addition to the common and inexpensive remote transmission via mobile radio (GSM, GPRS), for example with the GSM modem GSM742, also satellite modems, such as IRIDIUM are available and they enable worldwide data transmission.
Self-sufficient:
Owing to the low power consumption of sensors, data collectors and data transmission, an autonomous power supply system using (replaceable) batteries or solar panels can easily be feasible.
Directive-Compliant:
The specifications of the sensors used and the systematic structure of the AWS adheres to the standards of the World Meteorological Organization (WMO). Due to these high standards, AWS has been successfully used for decades on all continents and in all climates.
N/A
Parameters: Precipitation [mm] [mm/h]
Sensor
Measurement principle: Tipping scales
Collecting area: 200cm² /WMO standard, 400 cm² (option)
Measuring accuracy: 2-5% typical, depending on the rain intensity
Dissolution: 1 pulse? 0.1mm ? 0.1 l /m², 1 pulse = 0.2 mm (option)
Output signal: Pulse (reed contact), debounced
Housing
Material: Aluminium, painted
Tipping scales: Plastic
Dimensions: Height: 246mm, Ø205mm
Weight: 3.9kg
Fastening: 2" supporting column, mast-boom
Funnel heating
Heating power: 15W
(Option)
Power supply: 24VDC
Operating temperature: -20°C - +60°C
Parameters: Humidity [% RH]
Sensor: Humidity measuring transducer
Measurement principle: Capacitive
Measuring range: 0-100% RH
Measuring accuracy: ±2.5%
Output: 0-1V
Material: Aluminium
Dimensions: Ø12mm, 140mm length
Housing
Material: PC white, aluminum, stainless steel
Dimensions: Ø190mm, 160mm height
Fastening: Mast-boom
Power supply: 3.6-30VDC
Operating temperature: -40°C - + 60°C
Parameters: Air temperature [°C]
Sensor: Air temperature sensor
Measurement principle: Resistive
Measuring range: -40°C - + 50°C
Measuring accuracy: ± 0.3°C (at 20°C)
Output: 3.6-30VDC
Material: Aluminium
Dimensions: Ø12mm, 140mm length
Housing
Material: PC white, aluminum, stainless steel
Dimensions: Ø190mm, 160mm height
Fastening: Mast-boom
Power supply: 3.6-30VDC
Operating temperature: -40°C - + 60°C
Note: for combined air temperature/humidity sensors, technical data, see above
Parameters: Air pressure [hPa]
Sensor: Barometric sensor
Measurement principle: Absolute pressure
Measuring range: 10-1100 hPa
Measuring accuracy:
Absolute accuracy: ±1.5 hPa (700…1100 hPa, 25°C)
Relative Accuracy: ±0.5 hPa (700…1100 hPa, 25°C)
Temperature error: ±1 hPa, 0…+50°C +3/-1 hPa, -40°C…+85°C
Output:4-20mA
Housing
Material: Aluminium
Dimensions: 62x56x33mm (LxWxH)
Protection class:IP65
Fastening: Mast-boom
Power supply:10-28VDC
Operating temperature: -40°C - +85°C
Parameters: Wind direction [°]
Sensor: Wind direction sensor
Measurement principle: Non-contact, magnetic scanning system
Measuring range: 0-360 °
Measuring accuracy: +/- 2.5°
Output: 4-20 mA
Heating: AC/DC 24V self-regulating (option)
Housing
Material: Aluminium
Dimensions: Length of wind vane: 338 mm
Height of the wind vane: 86 mm
Overall height: 405 mm
Protection class: IP64
Fastening: Traverse
Power supply: 24 VDC +/-25%, max. 21 mA
Operating temperature: -40°C - +70°C
Parameters: Wind speed [m/s]
Sensor: Shell anemometer
Measurement principle: Non-contact, magnetic scanning system
Measuring range: 0-75 m/s
Measuring accuracy: ± 0.5 m/s
Output: 4-20 mA
Heating: AC/DC 24V self-regulating (option)
Housing
Material: Aluminium
Dimensions: Ø 212 mm, height 130 mm
Protection class: IP64
Fastening: Traverse
Power supply: 24 VDC -25…+50%, max. 10 mA
Operating temperature: -40°C…+70°C
Parameters: Wind speed [°] [m/s]
Sensor: Combined sensor for wind speed and direction
Wind direction
Measurement principle: Ultrasound
Measuring range: 0-359°
Measuring accuracy: ± 3 °
Output: SDI-12
Wind speed
Measurement principle: Ultrasound
Measuring range: 0…60 m/s
Measuring accuracy: ± 2%
Output: SDI-12
Material: Luran (plastic)
Dimensions: 142 x 160 mm
Protection class: IP65
Fastening: Mast mounting
Power supply: 9…30 VDC @ 14.5 mA
Operating temperature: -35°C - +70°C
Parameters: Evaporation [mm]
Sensor: Evaporation pan "Class A"
Potentiometer PG113
Measurement principle: Float / counterweight
Measuring range: 0-300mm
Measuring accuracy: 1 mm
Output: 0-1V
Housing
Material: V2A, stainless steel
Dimension Pan: Ø1206.5mm, 25mm height
Float tube: Ø346mm, 1000mm height
Protection class: IP54
Power supply: 5-24 VDC
Operating temperature: 0°C - +70°C
Parameters: Solar and global radiation [W/m²]
Sensor: Star pyranometer in accordance with Dirmhirn
Measurement principle: Pyranometric
Spectral range: 0.3 - 3µm
Measuring range: 0 - 1500 W/m²
Measuring accuracy: 1% / ° C
Output: 15 µV / W/m²
Material: Anodised aluminum
Dimensions: Ø159mm, height 75mm
Protection class: IP65
Power supply: none
Operating temperature: -40°C - + 60°C
Parameters: Solar and global radiation [W/m²]
Sensor: Global radiation transmitter
Measurement principle: Pyranometric
Spectral range: 285 - 3000 nm
Sensitivity (nominal): 15 x 10-6 V/(W/m2)
Material: Anodised aluminum
Dimensions: Ø78mm, 59mm Höhe
Protection class: IP65
Power supply: None
Operating temperature: -40°C - + 80°C
Parameters: Ground temperature [° C]
Sensor: Ground temperature sensor
Measurement principle: Resistive
Measuring range: -30°C - +70°C
Measuring accuracy: ± 0.3°C
Case depths: 20 /30 /60 /110 /160 /210 /310mm
Output: 0-100mV Material: Plastic
Dimensions: ø 10mm x 50mm
Power supply: 5-24VDC
Operating temperature: -30°C - +70°C
Parameters: Ground temperature [° C]
Sensor: Ground temperature sensor
Measurement principle: Resistive
Measuring range: 0-25°C or -5°C - + 50°C
Measuring accuracy: ± 0.1°C
Case depths: 10m
Output: 0-1V
Material: 1.4404 stainless steel
Dimensions: Ø22x179
Power supply: 5-24VDC
Operating temperature: -5°C - + 60°C
Parameters: Snow temperature [°C]
Sensor: Multi-sensor system snow temperature
9 temperature sensor on mast mounting
Measurement principle: Resistive
Measuring range: - 30°C - + 50 °C
Measuring accuracy: ± 0.1°C
Output: 0-1V
Material: Aluminium, 1.4404 stainless steel, PEEK plastic
Dimensions: Ø320mm x 3000mm
Protection class: IP66
Power supply: 7-30 VDC
Operating temperature: -5°C - + 60°C
Parameters: Snow height [m]
Sensor: Ultrasonic sensor
Measurement principle: Ultrasound
Measuring range: 0,7-10 m
Measuring accuracy: 0.1% FS
Output: 2x analogue 4-20mA, SDI-12, RS-485, RS-232, Modbus RTU
Material: Anodised aluminium
Dimensions: Ø180mm, length: 320mm
Protection class: IP64
Compensation of
air temperature
Sensor: Air temperature sensor
external sensor in an air-cooled radiation shield
Measurement principle: NTC semiconductor element
Measuring range: -35°C - +60°C
Measuring accuracy: 0.15%
Power supply: 10.5-15 VDC
Operating temperature: -40°C - + 60°C
Parameters: Snow water equivalent (SWE) measurement [kg/m²]
Sensor: Snow level
Measurement principle: Weighing principle
Measuring range: 0-200kg/m², 0-500kg/m², 0-1000kg/m²
Measuring accuracy: 0.3%
Output: 4-20mA
Material: Sheet steel
Dimensions: 2800x2400x70mm
Protection class: IP68
Power supply: 11-30 VDC
Operating temperature: -40°C - + 80°C
