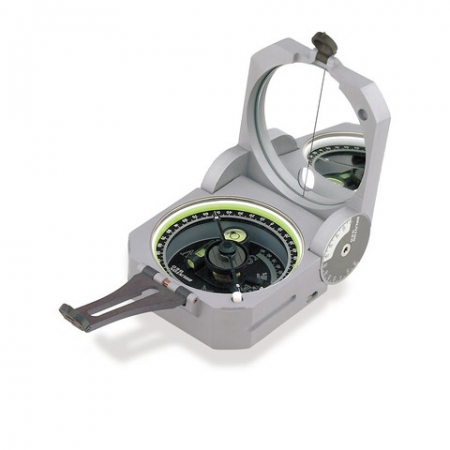

Brunton GEO Pocket Transit
- Brunton GEO Pocket Transit adjustable needle locking mechanism
- Hinge clinometer with 1° increments for 1/2° readable dip measurements
- Two long-level bubbles on the outside of the aluminum housing for no guess leveling from the sides or the bottom
- Cover hinge assembly designed for increased durability
- Buck Horn style sights for increased accuracy when sighting azimuth or vertical angles
- Single NdFeB magnet resists demagnetization better than any other type of magnet
- Azimuth accuracy +/- 1/2° with 1° graduations
- Vertical angle accuracy +/- 1/2° with 1° graduations and 10 minute vernier
- Vertical angle measurements to +/- 90° or 100% grade
- Percent grade scale with increments of 5%
- Induction dampened needle for quick, accurate readings
- Sapphire jewel bearing allows for smooth needle movement
- Magnetic declination adjustment allows for east or west declination settings to +/- 180°
- Precision aligned mirror with convenient see-through sighting capability
- Aluminum billet body assembly makes the GEO nearly indestructible
- 6061-T6 hard anodized aluminum body for permanent color and scratch resistance
- Ball & socket tripod mount is centered for increased accuracy of rotation
- O-rings make the GEO Waterproof for increased reliability
- Leather case included
- Overall dimensions: 3.8''x2.8''x1.3''
- Weight: 12.8 oz
- Made in the USA
| Azimuth accuracy | +/- 1/2° with 1° graduations |
| Vertical angle accuracy | +/- 1/2° with 1° graduations and 10 minute vernier |
| Vertical angle measurements | +/- 90° or 100% grade |
| Percent grade scale | 5% |
| Overall dimensions | 3.8''x2.8''x1.3'' |
| Weight | 12.8 oz |
