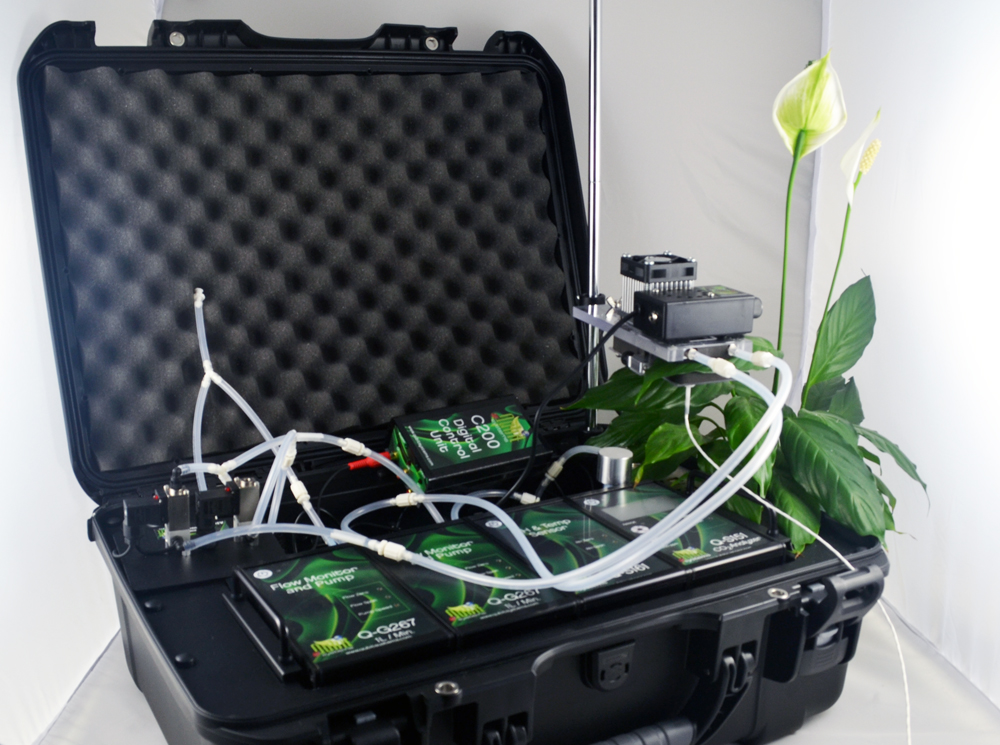

Q-Box CO650 Plant CO2 Analysis
Q-Box CO650 Plant CO2 Analysis

The Q-Box CO650 Plant CO2 Analysis Package has been designed for measurements of photosynthesis, respiration and transpiration in leaves when placed in a temperature controlled flow-through leaf chamber. You can use Plant CO2 Analysis Package in both the lab or field (with optional battery pack). When you combine Q-Box CO650 with 4 channel Gas Switching Sytem, you can monitor photosynthesis, respiration and transpiration on up to 3 leaves (channel 1 is a reference).  The Q-Box CO650 software automatically checks the reference levels of CO2 and water vapor and provides on-the-go calculations of photosynthesis and transpiration rates.

  • Modular Gas Exchange Measuring System
  • Temperature controlled flow-through leaf chamber
  • Components interchangeable with other Q-Box Packages
  • Automated calculations of carbon and water exchange rates
  • Housed in rugged box for easy transport and set up
  • Use in a lab or Field (with optional battery pack)



Applications

  • Photosynthetic CO2 Exchange Rate measurements
  • Transpiration Rate measurements
  • Water Use Efficiency studies
  • Dark Respiration Rate measurements
  • Leaf, Root and Whole Plant Studies (with optional chambers)
  • Soil Respiration or animal respiration with additional components

Components

  • Q-A101 laboratory stand (free standing and/or integrated into Q-Box)
  • A113 LED Light Source Calibrated in Software
  • Q-G267 Flow Monitor, Gas Pump x 2 (1L/min no load)
  • G1120 Temperature controlled Flow Through Leaf Chamber
  • G122 Large Gas Bags (2)
  • Q-S151 CO2 Analyzer (0-2000ppm) (Includes CO2 and H2O scrubbers)
  • Q-S161 RH/temperature sensor
  • S1730 Leaf Thermister
  • C200 Digital Control Unit (DCU)
  • A381 Two Solenoid Assembly for switching between reference and sample gas
  • S181 Absolute Pressure Sensor
  • C610 Three integrated LabQuest Mini data interfaces (9 Analog Channels)
  • C901 Logger Pro Software
  • C404 Customized Experimental Setup Files for collection, display and analysis of data
  • Q-Box Accessory Kit (tubing, filters, connectors)
  • Rugged Water-proof case housing the sensors and analyzers
  • Manual
  • individual power supplies for stand alone use of the sensors and analyzers
  • Li-ion 4 Battery pack (optional)
