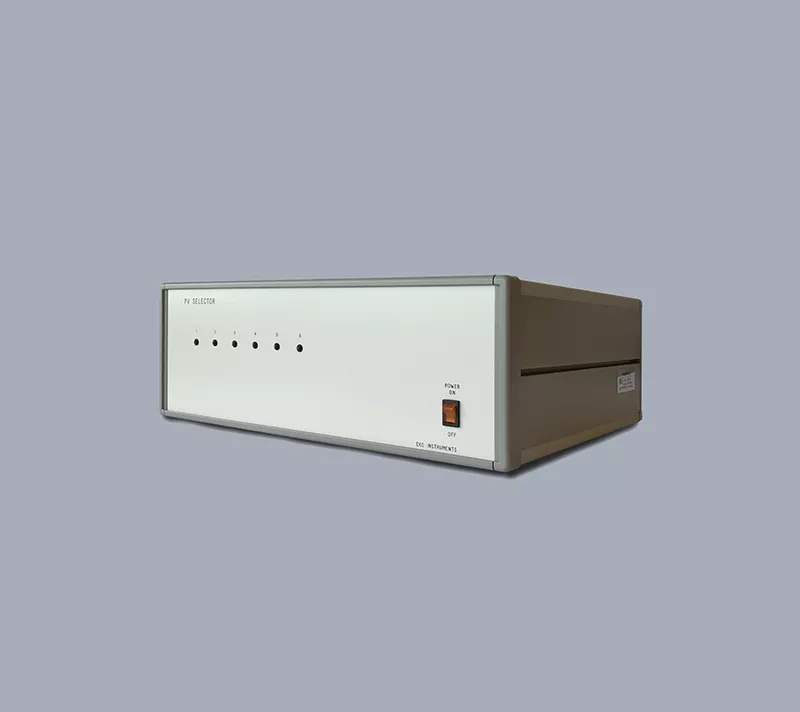

MP-303 PV Load Selector
For PV cells & modules up to 300W
The MP-303 Load Selector provides x6 channels for measuring the IV curves of connected PV modules in combination with the MP-160 I-V Tracer.
The MP-303 Load Selector provides x6 channels for measuring the IV curves of connected PV modules in combination with the MP-160 I-V Tracer and can be kept at MPPT conditions with an optional load.
The optional load can be a passive load, an electronic load or power optimiser that is connected to the inverter and grid. In total x8 units of the MP-303 can be connected to one MP-160.
- Switching capacity 300V / 10A
- x6 inputs channels
- Optional MPPT tracker
- Compatible with the MP-160 I-V Tracer
| Measurement range Voltage | 0.05 to 300 V |
| Measurement range Current | 0.005 to 10 A |
| Measurement range Power | 0 to 300 W |
| Operating temperature range | 0 to 40 °C |
| Power supply | 100 to 240 VAC, 30W |
| Dimensions mm | 370 (W) x 350 (D) x 133 (H) |
| Weight | 12 kg |
| Input channels | 6 |
| Max. devices | 8 |
