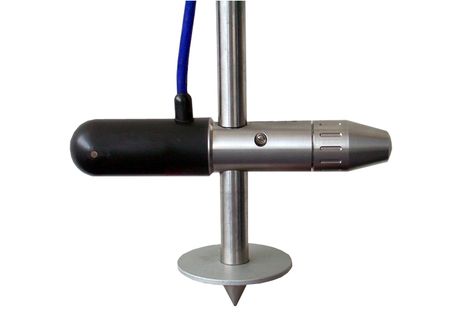

- Portable measuring instrument with a magnetic inductive flow sensor for mobile flow measurement on a Ø 20mm wing rod

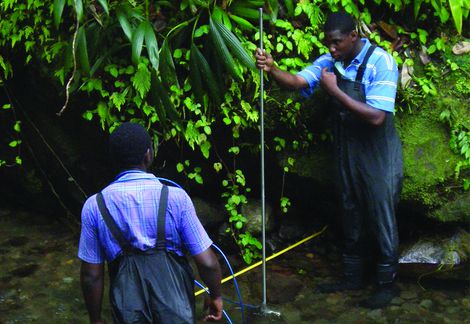

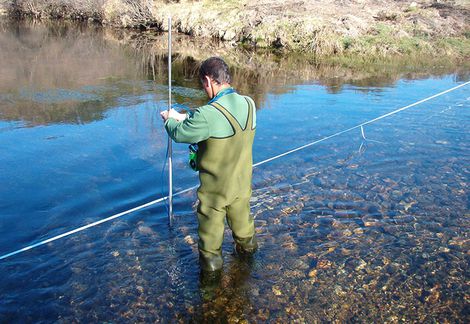

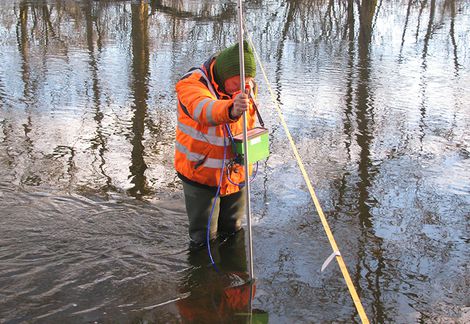

- Point measuring method (detection of point velocities in the measuring verticals)

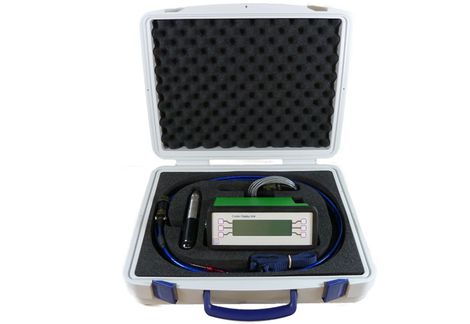

- Battery-powered handheld terminal with a large LCD and operated by keypad

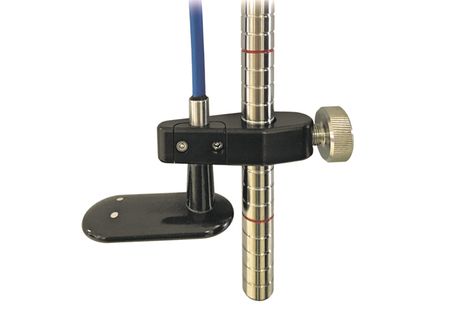

- FlowFlat sensor for use from 5 cm water level (optional)
Variable:
The FlowSens is a universal device for mobile flow measurement. Thanks to the electromagnetic measurement principle, FlowSens can be used where hydrological measuring vanes or Doppler measurement systems reach their limits, for example, at low flow rates, in heavily weedy waters and watercourses with low suspended matter content. Even under extreme operating conditions, FlowSens provides excellent measurement results. Changes in conductivity have no influence on the measurement. Ideal for measurements at very low water depths from 5 cm, a special flat sensor head (FlowFlat) is available.
User-friendly:
The compact control unit with large, illuminated LCD and a 6-key operation pad allows for both rapid and convenient programming and a very good legibility of the current flow rate, the mean values and the standard deviation.
| Measurement Principle | Magnetic inductive |
| Measuring Range | -5 up to + 5m/s |
| Measuring Accuracy | ±0,5% + 0 point + 5mm/s |
| 0-point Drift | <0,5mm/s |
| Housing Material | V4A, 1.4305, PU |
| Min. Depth | FlowSens 15 cm / FlowFlat 5 cm |
| Sensing Volume |
FlowSens approx. 12cm around sensor FlowFlat Cylinder (10mm high) Ø20mm |
| Protection Class | IP 68 |
| Cable Length | 5m (standard), extra length to max. 100m (optional) |
| Transducer Housing Material | Injection moulding ABS |
| Protection Class | IP 67 |
| Keyboard | Membrane keypad with 6 keys |
| Display | LC display with backlight (switchable) |
| Interface | RS232 |
| Power Supply | 8 x alkaline manganese batteries (replaceable) for about 37 hours in measuring mode |
