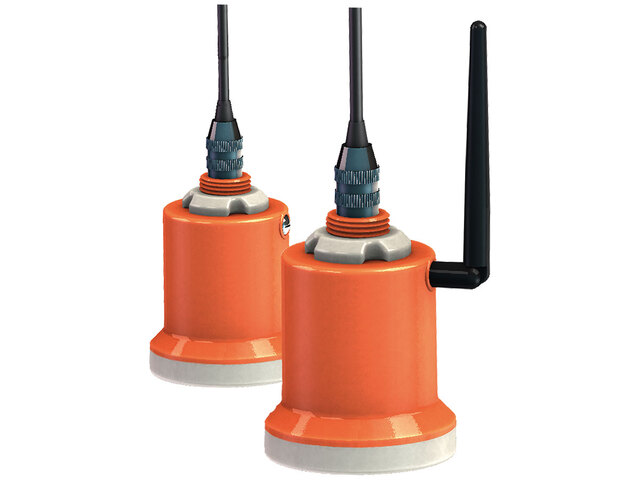

It is suitable for water level measurement of river channels and lakes. The antenna beam angle is small, with small dimension and very light.
1. Based on the complementary metal-oxide-semiconductor transistor (CMOS) components with high compact architecture, gives higher signal to noise ratio and smaller blind zone.
2. 5GHz working bandwidth means higher measurement resolution and accuracy.
3. 3°antenna beam angle, so the interference in the environment has less impact on the instrument and the installation is more convenient.
4. Shorter wavelength offers better reflection performance on solid surface, so the universal flange is not necessary.
5. Supporting remote debugging and upgrading, reduce waiting time and improve the working efficiency.
| Application | Water level masurement |
| Measuring Range | 0～30m |
| Antenna Type | Integrated lens antenna design |
| Mounting Thread | Installing by bracket |
| Beam angle | 6° |
| Accuracy | ±3mm |
| Medium Temperature | （-40～85）℃ |
| Signal Output | RS485 MODBUS-RTU or wireless |
| Working Frequency | （76 ~ 81）GHz |
| Protection Grade | IP67 |
