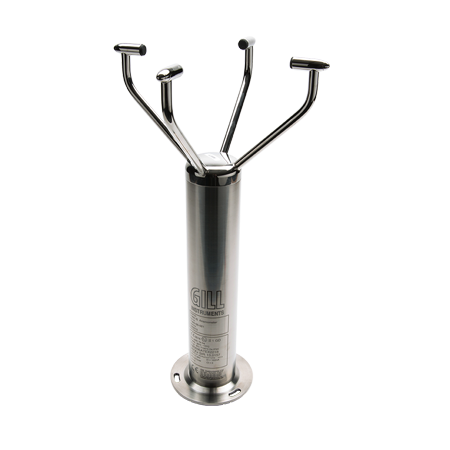

WindObserver IS Ultrasonic Anemometer for use in Hazardous Areas

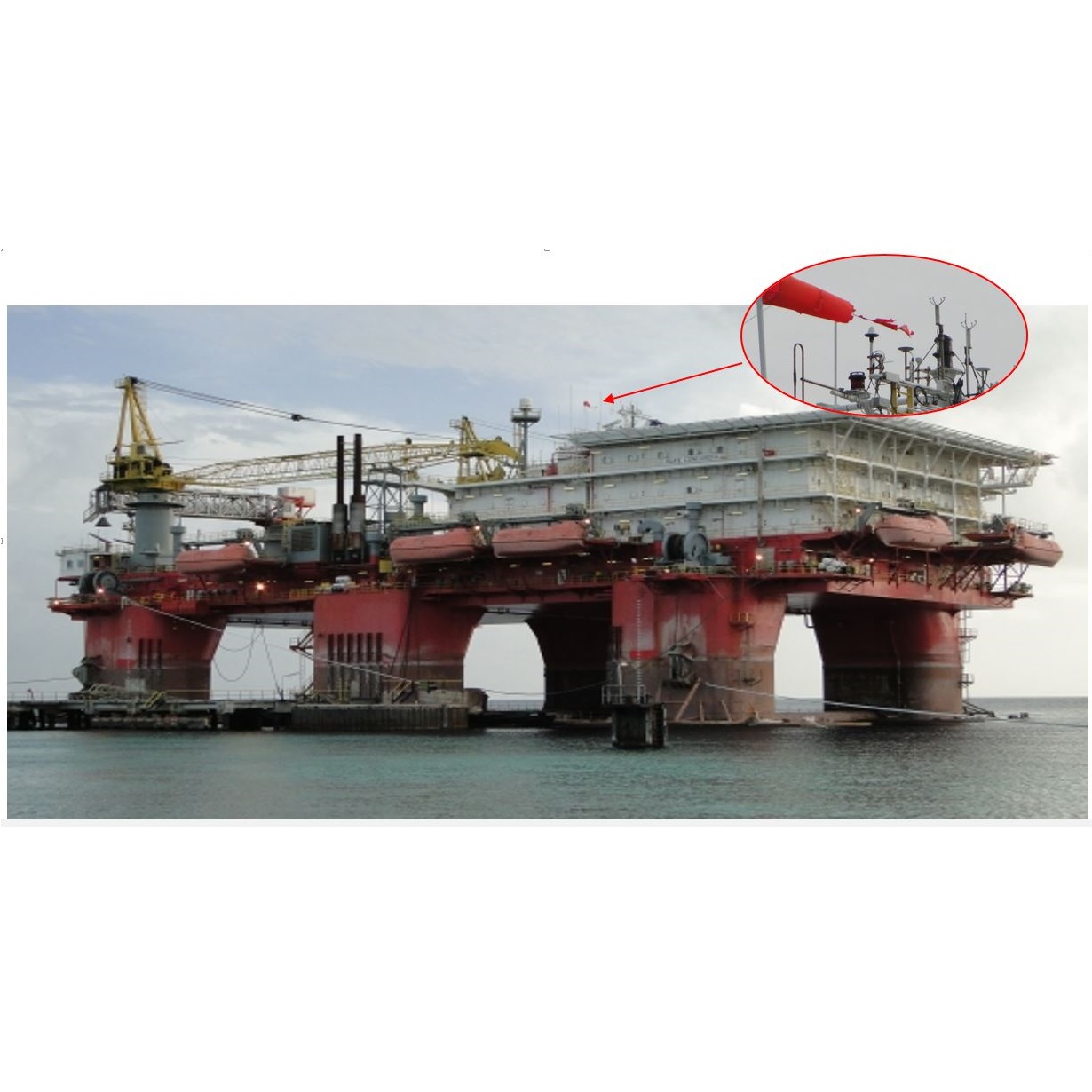

The WindObserver IS system is particularly suited to offshore oil production platforms, support tankers, drilling platforms, onshore petrochemical plants and other hazardous petrochemical environments
The WindObserver IS system is particularly suited to offshore oil production platforms, support tankers, drilling platforms, onshore petrochemical plants and other hazardous petrochemical environments. The system provides wind speed and direction data for use in producing offshore meteorological observations in accordance with UK CAA CAP 437.
The WindObserver IS is certified as ‘Intrinsically Safe’ for use in the ‘Hazardous Area’, whilst the associated power and communications interface is located in the ‘Non Hazardous Area’.
The ATEX, IECEx & UKEX certification ensures that the wind system may be deployed on a worldwide basis without the need for expensive local recertification.
The system requires no regular maintenance, beyond a visual check, eliminating in-service maintenance costs in the offshore environment where the installation of reliable low maintenance equipment is essential.
Customer selectable vector rolling average and 3 second gust in accordance with WMO - No. 8 Seventh Edition 2008 ISBN 978-92-63-10008-5.
- ATEX, IECEx & UKEX certification
- Low voltage or mains voltage power supplies
- Galvanic isolation
- Gill or NMEA digital output
- Averaging/gusts to WMO guidelines
- Reduce offshore maintenance costs
- 0-75m/s wind speed operation
- Over 10 years proven service worldwide
- Factory calibrated for life
| WIND SPEED | |
| Range | 0 - 75 m/s |
| Starting Threshold | 0.01 m/s |
| Accuracy | 2% at 12 m/s |
| Resolution | 0.01 m/s |
| DIRECTION | |
| Range | 0 - 360° |
| Accuracy | ± 4° |
| Resolution | 1° |
| Dead Band Direction | None |
| MEASUREMENT | |
| Output | 1 Hz, 2 Hz or 4 Hz |
| Parameters | UV, Polar and NMEA |
| Units | m/s, knots, mph, kph, ft/min |
| Averaging | 0 - 3600s |
| DIGITAL OUTPUT | |
| Communication | RS422, full duplex to PCI or LVPCI |
| Baud Rates | 1200, 2400, 4800, 9600, 19200 |
| Formats | 8 bit data, odd, even or no parity |
| Anemometer Status | |
| POWER REQUIREMENT | |
| Anemometer | 6V - 12VDC, 30 mA peak (from PCI or LVPCI) All circuits protected to 0.8 Joules |
| MECHANICAL | |
| External Construction | Stainless Steel 316 |
| Weight | 1.9 kg |
| Size | 380mm x 210mm |
| ENVIRONMENTAL | |
| Moisture Protection | IP66 (NEMA4X) |
| Ambient Operating Temperature | -30°C to + 70°C |
| Storage Temperature | -50°C to + 75°C |
| Humidity | 0% to 100% RH |
| Precipitation | 300mm/hr |
| EMC | EN 60945:2002+AC1 (Clausa 9, 10 & 11.2) EN 61326-1: 2013 |
| CERTIFICATIONS & APPROVALS | |
| Approvals: Intrinsic Safety | ATEX, IECEx & UKEX certification. |
