Extra Large 30 x 30 cm²
Weather-proofed, ultra-thin, and extra big. The HF-30S is perfect for measuring average heat flux over a large, flat area or surface.
A heat flux sensor is a thermopile, an electronic device that translates thermal energy into an electrical voltage proportional to the temperature gradient across its thermocouples' hot and cold junctions.
EKO Instruments offers a selection of thin substrate heat-flux sensors in a range of different sizes and thicknesses, an ideal option for research and engineering applications as well as manufacturing control and monitoring processes.

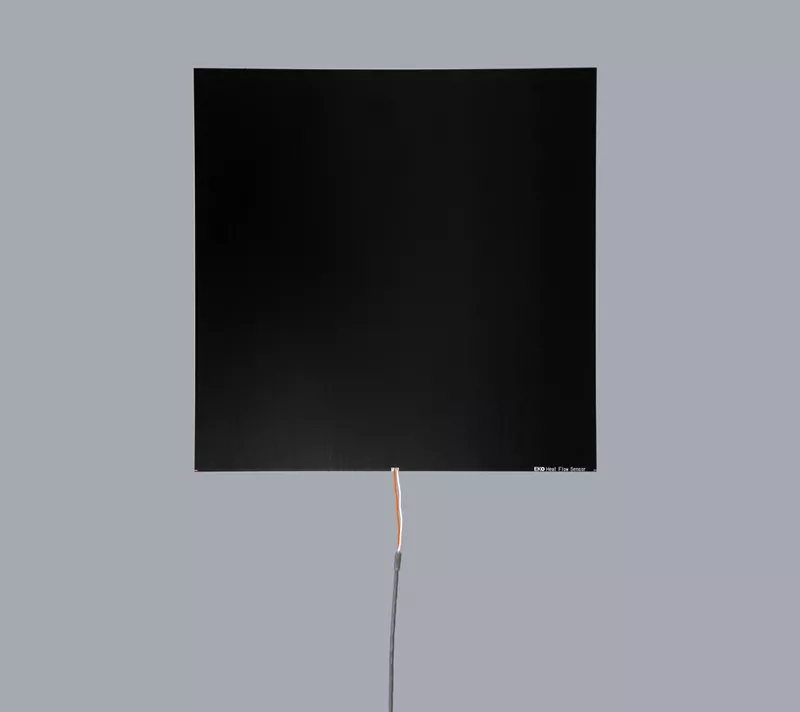

The HF-30S is a thin foil extra-large heat-flow sensor covering 30 x 30 cm². Its size ensures properly averaged thermal conductivity results on adequate, flat surfaces without the potential risk of local hot spot effects or thermal bridges.
- Ultra-thin & Extra-big
- Low thermal resistance
- Weather-proof design
| Response time 95% | 28 Sec |
| Sensitivity Approx. | 100 µV/W/m² |
| Thermal Resistance | 0.0016 °C/(W/m2) |
| Electric Resistance (Room Temp.) | 400 to 800 Ω |
| Operating temperature range | -20 to 120 °C |
| Cable length | 10 m (20 or 30 m) |
| Dimensions mm | 300 (L) x 300 (W) x 0.5 (H) |
| Weight (without cable) | 0.1 kg |
| Substrate | Glass epoxy |
| Cladding | Epoxy |
| Ingress protection IP | - |
