4-20mA Digital Signal Conditioner

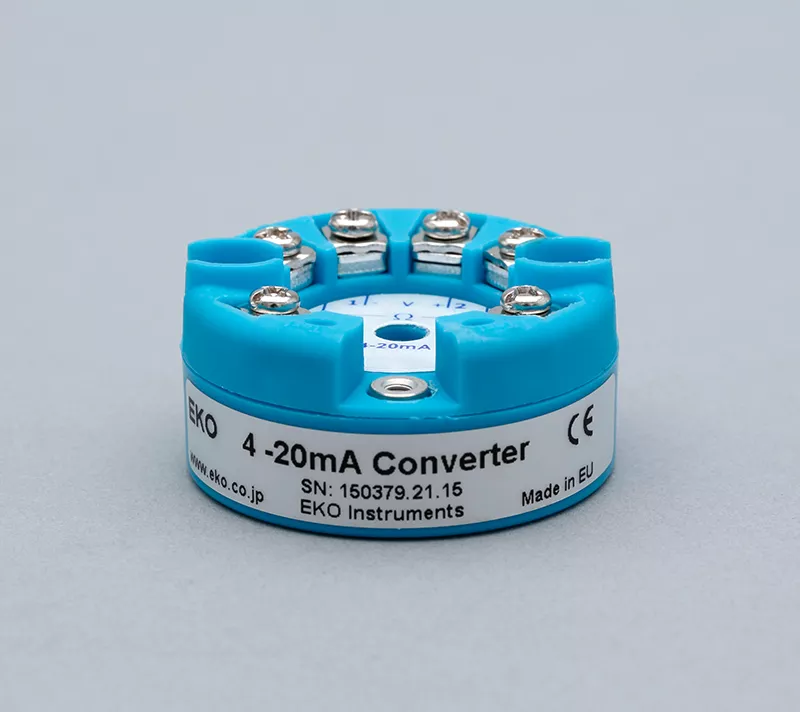

The MC-12 is a 4-20mA digital signal conditioner designed to convert the output of a PT-100 temperature sensor into a 4-20mA current.
The MC-12 is a 4-20mA digital signal conditioner designed to convert the output of a PT-100 temperature sensor into a 4-20mA current. The MC-12 can be used with all PT-100 temperature sensors (2W/3W/4W) and can be connected to dataloggers or inverters with a 4-20mA input channel.
With the MC-12, sensor cables can be extended over long distances without signal loss or potential electromagnetic interference, even in noisy industrial environments. At the same time, the robust input/output screw terminals can be easily connected to the signal cable leading to any on-site measurement systems.
And with the optional USB controller and EKO Sense software, users can quickly check and change their converter settings.
- PT-100 Temperature Sensor Interface (2W / 3W / 4W)
- 4-20mA / -40°C to 120°C
- Optional USB controller and EKO Sense configuration software
| Output | Digital (4-20mA) |
| Input range 1 | - |
| Input range 2 | 2W, 3W, 4W PT-100 |
| Output range | 4-20mA = -40°C to 120°C |
| Resolution (µV) | - |
| Resolution | < 0.1 ºC |
| Impedance | - |
| Temperature response -20°C to 50°C | < 0.2 % |
| Response time 95% | < 1 Sec |
| Non-linearity full span | < 0.1 % |
| Operating temperature range | -40 to 80 °C |
| Power supply | 12 to 24 +/-10% VDC |
| Power consumption | 0.08 to 0.5 W |
| Dimensions | 45 mm (D) x 23 mm (H) |
| Weight | 0.03 kg |
| Ingress protection IP | 20 |
| Options | |
| USB programming kit | USB-A |
