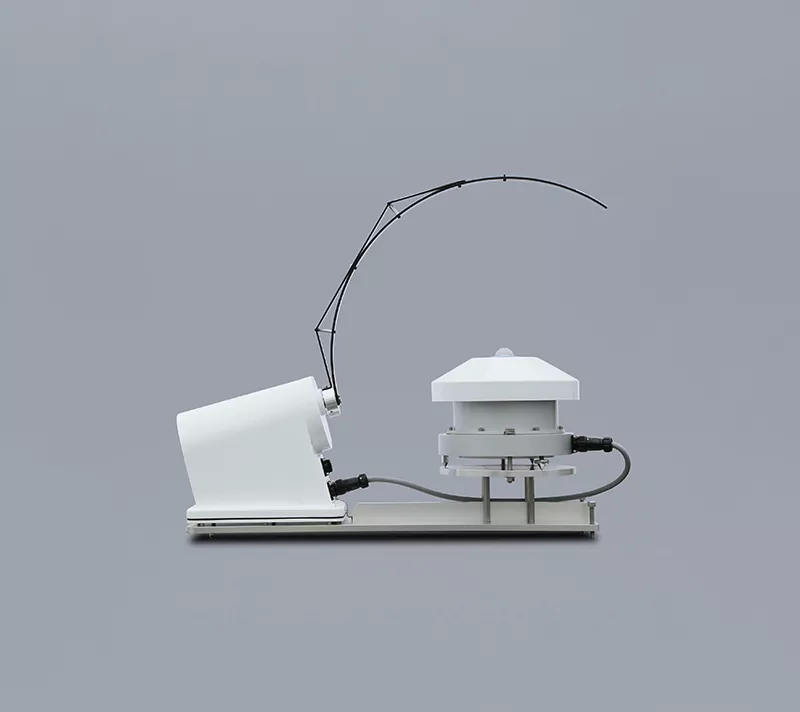

RSB-01 Rotating Shadow Band
DNI, GHI & DHI Measurement
Paired with an EKO Spectroradiometer, the RSB-01 Rotating Shadow Band is a compact, all-weather spectral measurement alternative to conventional x3 component sun tracker systems.
Paired with an EKO Spectroradiometer, the RSB-01 Rotating Shadow Band is a compact, attractive, low-cost, all-weather spectral measurement alternative to conventional DNI, GHI, and GHI sun tracker systems.
Recommended for applications with limited space and lower budgets, the MS-711 Global Spectroradiometer combined with an RSB-01 delivers accurate DNI measurements that are consistently on par with a sun tracker mounted MS-711 DNI Spectroradiometer.
The RSB-01 is compatible with all EKO Spectroradiometers.
- Compatible with all EKO Spectroradiometers
- Supports DIN, GHI & DHI Measurement with a Spectroradiometer
- All-Weather, Reliable, Robust & Maintenance Free
- GPS Receiver for easy set-up
- Suitable for Horizontal or POA setup
- PC or Datalogger Control
| Compatible sensors | MS-711 |
| Shading angle | 5º |
| Measurement time Interval | 60 Sec |
| Operating temperature range | -10 to 50 °C |
| Power supply | 100 to 230 VAC |
| Power consumption | 8 to 15 W |
| Dimensions | 300 mm (W) x 700 mm (L) x 590 mm (H) |
| Weight | 11 kg |
| Communication | RS-422 to USB |
