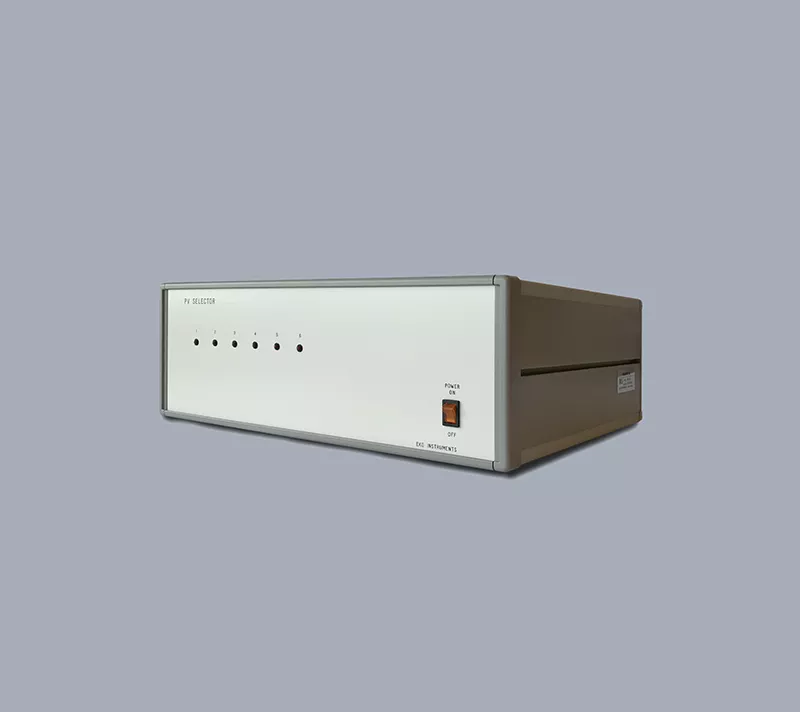

MI-510 PV Module Selector
For PV cells & modules up to 300W
The MI-510 PV Module Selector provides x6 channels for measuring PV modules sequentially and is designed to work with the MP-160 MP-180 I-V Tracers.
The MI-510 PV Module Selector provides x6 channels for measuring PV modules sequentially and is designed to work with the MP-160 MP-180 I-V Tracers for evaluating the long-term stability of PV modules.
Up to x4 units of the MI-510 can be connected to the MP-160 and MP-180 I-V Tracers to test the long-term stability and I-V characteristics of multiple PV cells and modules.
- Switching capacity 100V / 7A
- x6 input channels
- Up to 4x module selectors
- Compatible with MP-160 & MP-180 I-V Tracers
| Measurement range Voltage | 0.05 to 400 V |
| Measurement range Current | 0.005 to 20 A |
| Measurement range Power | 0 to 3000 W |
| Operating temperature range | 0 to 40 °C |
| Power supply | 100 to 240 VAC, 250W |
| Dimensions mm | 370 (W) x 350 (D) x 133 (H) |
| Weight | 5 kg |
| Input channels | 6 |
| Max. devices | 8 |
