S-Series Internal Diagnostics
EKO Universal Sensor Design

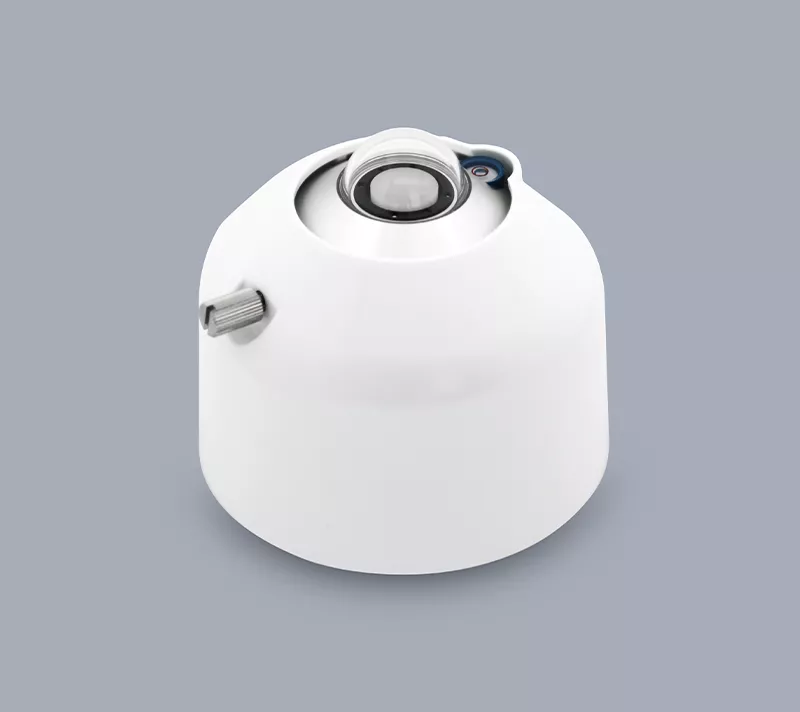

Setting a new standard in UV irradiance monitoring, the MS-10S UVA and MS-11S UVB radiometers with integrated transducers deliver precise temperature correction, outstanding stability, superior UV measurement range and unbeatable response times.
Setting a new standard in UV irradiance monitoring, the MS-10S UVA and MS-11S UVB radiometers with integrated transducers deliver precise temperature correction, outstanding stability, superior UV measurement range and unbeatable response times.
Part of EKO’s elite S-Series range of solar monitoring solutions, the MS-10S and MS-11S also include a unique 4-channel smart interface compatible with 99% of data loggers, DAQ, and SCADA systems. And internal diagnostic sensors for remote visibility over internal temperature, humidity, tilt and roll angle, ensuring optimum performance with reduced maintenance costs.
With a compact and lightweight design based on EKO’s universal sensor platform, the MS-10S and MS-11S are easy to manage, tough, reliable, and an industry-leading option for material testing, medical research and industrial field monitoring applications.
- 2 Year Warranty & Recommended Recalibration Interval
- Smart 4-channel Analog & Digital Interface
- Level A EMI/EMC electronics surge filter & protection
- Internal Diagnostics for temperature, tilt & roll
| Measurement Range | 0 to 10 W/m² |
| Temperature Response (-20°C to +50°C) | < ±1% |
| Spectral Range | 280 to 315 nm |
| Spectral Error | < 20% |
| Directional Response (0° to 70°) | < ±5% |
| Response Time (95%) | < 0.2 Sec |
| Non-linearity | < 1% |
| Operating Temperature Range | -40 to 80°C |
| Output | Modbus 485 RTU, SDI-12, 4-20 mA, or 0-1 V (100 Ω) |
| Power Consumption | < 0.2 W |
| Size and Weight | ⌀96 x 101H, 0.4 kg |
