Designed for IEC61724-1 Compliance
Ensure IEC 61724-1 compliance with the MV-01 Ventilator & Heater, compatible with all MS & S-Series sensors, for dew, ice & snow mitigation in all conditions.

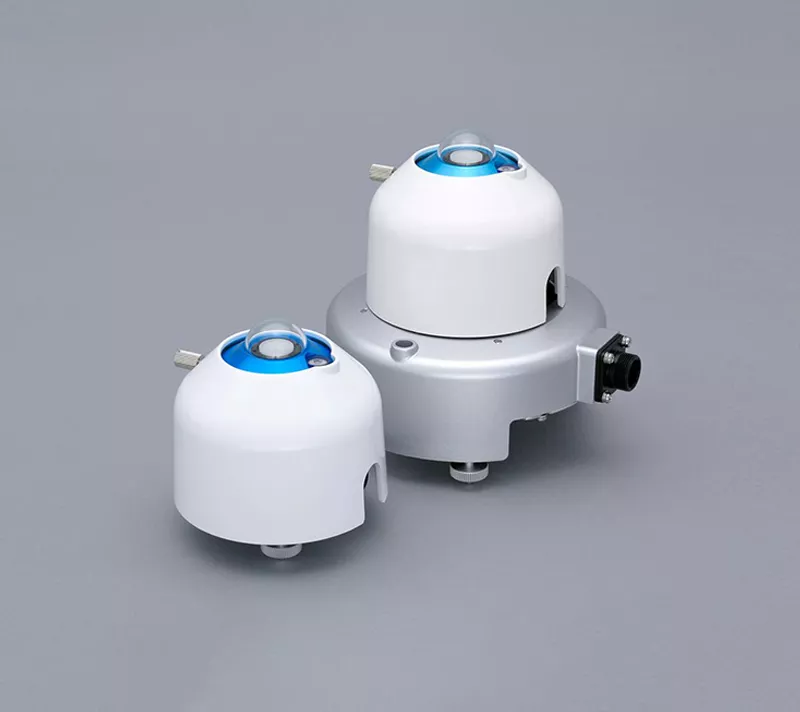

Guarantee IEC 61724-1 compliant monitoring with the MV-01 Ventilator & Heater. Compatible with all MS & S-Series sensors, the MV-01 is an optional add-on that helps to reduce sensor soiling, keeping sensors free from dew, ice and snow.
Proven in challenging environmental conditions, the MS-80S Class A Pyranometer plus MV-01 is a go-to option globally for rooftop solar stations, solar parks of all sizes, and large weather monitoring sensor networks.
Plus, with the MS-Albedo MV Kit, users can also combine the MV-01 with any two MS or S-Series sensors to create a custom IEC 61724-1 compliant albedometer.
The MV-01 features a low power fan and highly effective heater, with independent on/off settings for variable operating conditions, a standard tacho output for fan speed monitoring and a temperature safety switch to protect the ventilator from overheating.
- Ensures data availabilty in all conditions for IEC 61724-1 compliance
- Compatible with all MS & S-Series Sensors
- Independent Low Power Fan & Heating Systems
- Separate on/off switches for variable conditions
- Fan speed monitor & temperature safety switches
| Compatible Sensors | MS & S-Series Sensors |
| Power Supply | 12 VDC VDC |
| Power consumption | 2 to 9 W |
| Operating temperature range | -30 -to 60 °C |
| Induced Zero offsets | < 1 W/m2 |
| Tacho output | Pulse / 100Hz / 3000 RPM |
| Ingress protection IP | 54 |
| Dimensions mm | 138 (D) x 67 (H) |
| Weight | 0.7 kg |
| Standard Cable length | 10m (Optional lengths 20m, 30m, 50m) |
